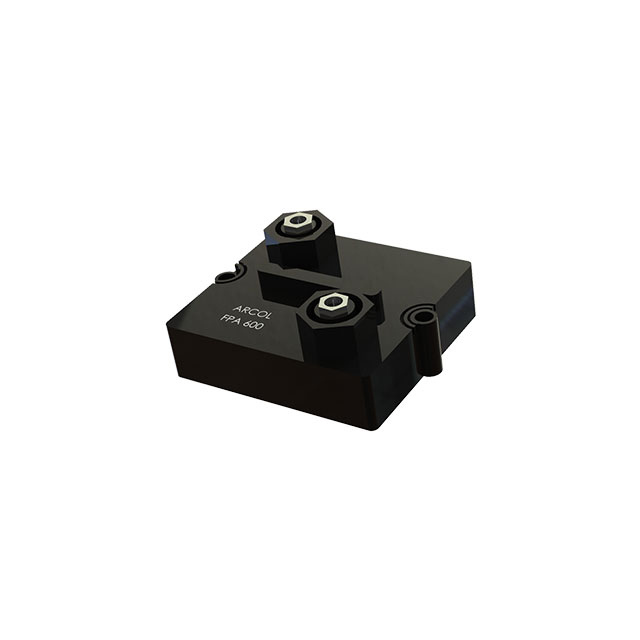

FPA600 Series

Manufacturer: Ohmite

Catalog

PLANAR RESISTORS - CHASSIS MOUNT 600 WATTS THICK FILM POWER 500 OHMS 5%

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Resistance	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Temperature Coefficient	Composition	Lead Style
Ohmite FPA600 500R J	2.559 in	60 mm	65 mm	2.362 in	0.5 kOhms	Flanges	-55 C	150 °C	600 W	1.004 in	25.5 mm	5 %	150 ppm/°C	Thick Film	M5 Threaded
Ohmite FPA600 10R K	2.559 in	60 mm	65 mm	2.362 in	10 Ohms	Flanges	-55 C	150 °C	600 W	1.004 in	25.5 mm	10 %	150 ppm/°C	Thick Film	M5 Threaded
Ohmite FPA600 470R J	2.559 in	60 mm	65 mm	2.362 in	470 Ohms	Flanges	-55 C	150 °C	600 W	1.004 in	25.5 mm	5 %	150 ppm/°C	Thick Film	M5 Threaded
Ohmite FPA600 1M J	2.559 in	60 mm	65 mm	2.362 in	1 MOhms	Flanges	-55 C	150 °C	600 W	1.004 in	25.5 mm	5 %	150 ppm/°C	Thick Film	M5 Threaded
Ohmite FPA600 2K5 J	2.559 in	60 mm	65 mm	2.362 in	2500 Ohms	Flanges	-55 C	150 °C	600 W	1.004 in	25.5 mm	5 %	150 ppm/°C	Thick Film	M5 Threaded
Ohmite FPA600 47R J	2.559 in	60 mm	65 mm	2.362 in	47 Ohms	Flanges	-55 C	150 °C	600 W	1.004 in	25.5 mm	5 %	150 ppm/°C	Thick Film	M5 Threaded
Ohmite FPA600 20K J	2.559 in	60 mm	65 mm	2.362 in	20 kOhms	Flanges	-55 C	150 °C	600 W	1.004 in	25.5 mm	5 %	150 ppm/°C	Thick Film	M5 Threaded
