MS3108E18 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

PLUG

Part	Number of Positions	Qualification	Termination	Connector Type	Primary Material	Fastening Type	Shell Finish	Orientation	Grade	Current Rating	Shell Material	Shell Size - Insert Length	Shell Size - Insert Width	Contact Finish - Mating	Cable Opening	Shielding	Applications	Ingress Protection	Color	Contact Material	Insert Material	Operating Temperature (Max)	Operating Temperature (Min)	Features	Mounting Type	Voltage Rating (DC)	Voltage Rating (AC)
Amphenol Aerospace Operations MS3108E18-22P
Amphenol Aerospace Operations MS3108E18-24P

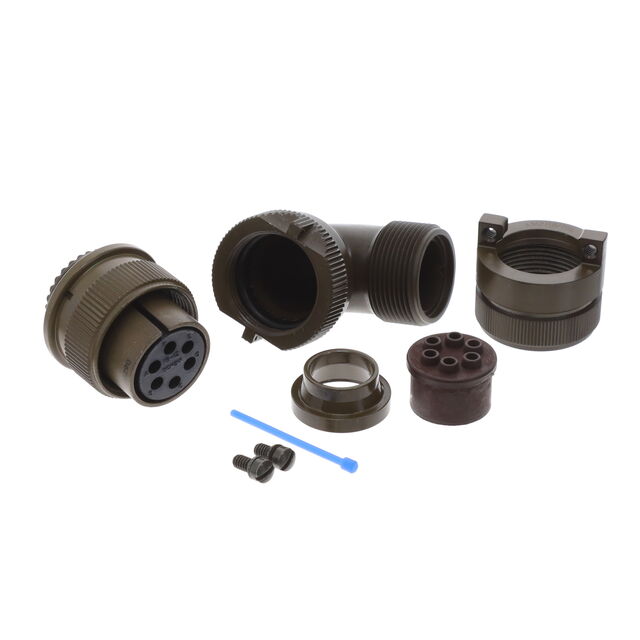

Amphenol Aerospace Operations MS3108E18-12S	6	MIL-DTL-5015	Solder Cup	Female Sockets Plug	Metal	Threaded	Cadmium Olive Drab Chromate	N (Normal)	Military	13 A	Aluminum Alloy	18 mm	12 mm	Silver	0.531 in	Unshielded	Marine Military	Environment Resistant	Olive Drab	Copper Alloy	Neoprene	125 °C	-55 °C	Cable Clamp Coupling Nut	Free Hanging (In-Line) Right Angle
Amphenol Aerospace Operations MS3108E18-27P
Amphenol Aerospace Operations MS3108E18-25P
Amphenol Aerospace Operations MS3108E18-25S
Amphenol Aerospace Operations MS3108E18-4S	4	MIL-DTL-5015	Solder Cup	Female Sockets Plug	Metal	Threaded	Cadmium Olive Drab Chromate	N (Normal)	Military	13 A	Aluminum Alloy	18 mm	4 mm	Silver	0.531 in	Unshielded	Marine Military	Environment Resistant	Olive Drab	Copper Alloy	Neoprene	125 °C	-55 °C	Cable Clamp Coupling Nut	Free Hanging (In-Line) Right Angle	1250 VDC	900 VAC
Amphenol Aerospace Operations MS3108E18-23P
Amphenol Aerospace Operations MS3108E18-4P	4	MIL-DTL-5015	Solder Cup	Male Pins Plug	Metal	Threaded	Cadmium Olive Drab Chromate	N (Normal)	Military	13 A	Aluminum Alloy	18 mm	4 mm	Silver	0.531 in	Unshielded	Marine Military	Environment Resistant	Olive Drab	Copper Alloy	Neoprene	125 °C	-55 °C	Cable Clamp Coupling Nut	Free Hanging (In-Line) Right Angle	1250 VDC	900 VAC
Amphenol Aerospace Operations MS3108E18-28P
