HFE1600 Series
Manufacturer: TDK Corporation
Beta
⌘K
AC/DC CONVERTER 48V 1600W
| Part | Efficiency | Power (Watts) | Operating Temperature [Min] | Operating Temperature [Max] | Number of Outputs | Features | Voltage - Isolation | Approval Agency | Current - Output 1 | Applications | Mounting Type | Voltage - Input [Max] | Voltage - Input [Min] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Voltage - Output 1 | Type | Accessory Type | For Use With/Related Products |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | 92 % | 1.6 kW | -20 °C | 71 °C | 1 | Adjustable Output Load Sharing Remote On/Off Remote Sense Universal Input | 3000 V | CE | 33 A | ITE (Commercial) | Rack Mount | 265 VAC | 85 VAC | 320.4 mm | 86.2 mm | 1.61 " | 12.61 in | 3.4 in | 40.8 mm | 48 V | Front End | ||
 TDK Corporation | Blanking Panel | HFE1600 Series | |||||||||||||||||||||
TDK Corporation | 90 % | 1.6 kW | -20 °C | 71 °C | 1 | Adjustable Output Load Sharing Remote On/Off Remote Sense Universal Input | 3000 V | CE | 47 A | ITE (Commercial) | Rack Mount | 265 VAC | 85 VAC | 320.4 mm | 86.2 mm | 1.61 " | 12.61 in | 3.4 in | 40.8 mm | 32 V | Front End | ||

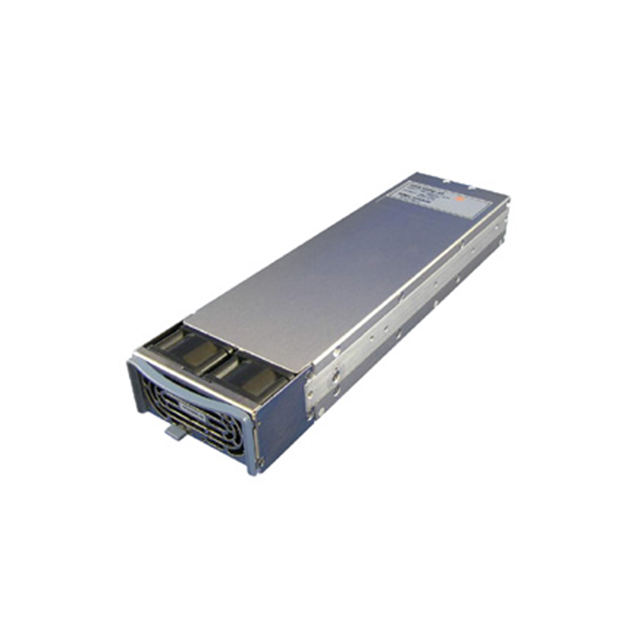

 TDK Corporation | LAN Module | HFE1600 Series | |||||||||||||||||||||

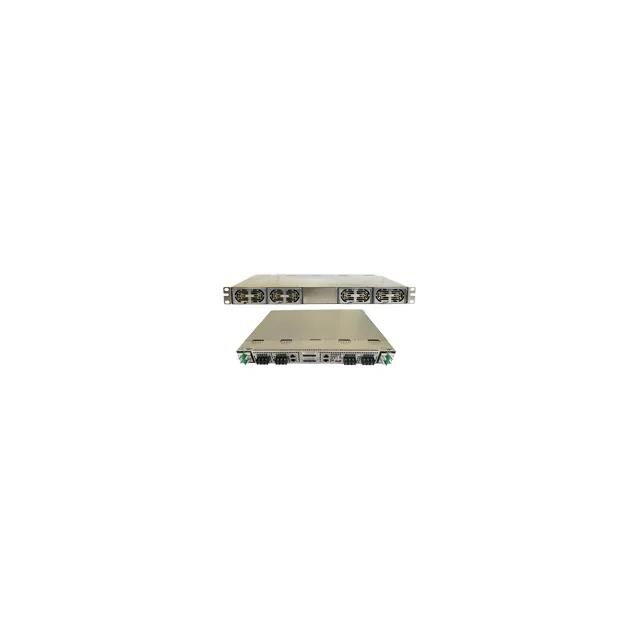

 TDK Corporation | Power Shelf | HFE1600 Series | |||||||||||||||||||||
 TDK Corporation | Rack Mount | HFE1600 Series | |||||||||||||||||||||
 TDK Corporation | Evaluation Board | HFE1600 Series | |||||||||||||||||||||
 TDK Corporation | 90 % | 1.6 kW | -20 °C | 71 °C | 1 | Adjustable Output Load Sharing Remote On/Off Remote Sense Universal Input | 3000 V | CE | 133 A | ITE (Commercial) | Rack Mount | 265 VAC | 85 VAC | 320.4 mm | 86.2 mm | 1.61 " | 12.61 in | 3.4 in | 40.8 mm | 12 V | Front End | ||
 TDK Corporation | 90 % | 1.6 kW | -20 °C | 71 °C | 1 | Adjustable Output I2C Interface Load Sharing PMBus™ Remote On/Off Remote Sense Universal Input | 3000 V | CE | 133 A | ITE (Commercial) | Rack Mount | 265 VAC | 85 VAC | 320.4 mm | 86.2 mm | 1.61 " | 12.61 in | 3.4 in | 40.8 mm | 12 V | Front End |
