Tomcat Series

Catalog

COUPLED INDUCTORS 27UH 20% 3.54A

Part	Package / Case	Current Rating - Series	Mounting Type	Inductance - Connected In Series	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Shielding	Height	Height	Current Rating - Parallel	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Inductance - Connected In Parallel	DC Resistance (DCR) - Series	Number of Coils	DC Resistance (DCR) - Parallel
Pulse Electronics P0402NL	Nonstandard	1.77 A	Surface Mount	161.8 µH	0.715 in	0.59 in	14.99 mm	18.16 mm	Unshielded	0.31 in	7.87 mm	3.54 A	20 %	130 °C	-40 C	40.5 µH	212.8 mOhm	2	53.21 mOhm

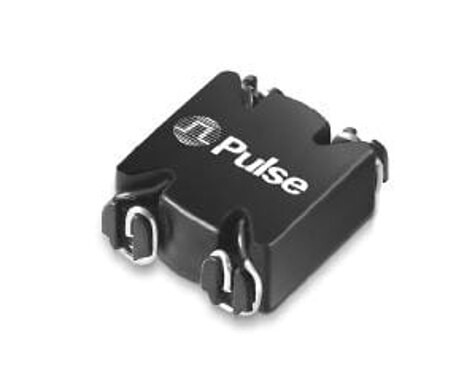

Pulse Electronics P0400NL	Nonstandard	2.7 A	Surface Mount	74.1 µH	0.715 in	0.59 in	14.99 mm	18.16 mm	Unshielded	0.31 in	7.87 mm	5.4 A	20 %	130 °C	-40 C	18.5 µH	93 mOhm	2	23.24 mOhm
Pulse Electronics P0397NL	Nonstandard	4.1 A	Surface Mount	23.7 µH	0.715 in	0.59 in	14.99 mm	18.16 mm	Unshielded	0.31 in	7.87 mm	8.2 A	20 %	130 °C	-40 C	5.9 µH	41.9 mOhm	2	10.47 mOhm
