UQQ-12 Series

Catalog

DC DC CONVERTER 12V 96W

Part	Voltage - Output 1	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Input (Max) [Max]	Number of Outputs	Voltage - Input (Min) [Min]	Power (Watts)	Voltage - Isolation	Mounting Type	Features	Control Features	Package / Case	Type	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Efficiency	Size / Dimension [y]	Size / Dimension [z]	Supplier Device Package
Murata Electronics UQQ-12/8-Q48NB9-C	12 V	8 A	12.7 mm	1.45 in	36.8 mm	0.5 in	56.4 mm	2.22 "	75 V	1	18 V	96 W	2250 VDC	Through Hole	OTP OVP Remote On/Off SCP UVLO	Active Low Enable	8-DIP Module 1/4 Brick	Isolated Module	85 °C	-40 C	ITE (Commercial)

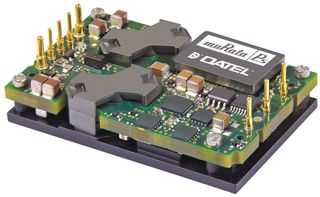

Murata Electronics UQQ-12/8-Q12PB-C	12 V	8 A	12.7 mm	1.45 in	36.8 mm	0.5 in	56.4 mm	2.22 "	36 V	1	9 V	96 W	2000 V	Through Hole	OTP OVP Remote On/Off SCP UVLO	Active High Enable	8-DIP Module 1/4 Brick	Isolated Module	85 °C	-40 C	ITE (Commercial)	89 %
Murata Electronics UQQ-12/8-Q12NB-C	12 V	8 A	12.7 mm	1.45 in	36.8 mm	0.5 in	56.4 mm	2.22 "	36 V	1	9 V	96 W	2000 V	Through Hole	OTP OVP Remote On/Off SCP UVLO	Active Low Enable	8-DIP Module 1/4 Brick	Isolated Module	85 °C	-40 C	ITE (Commercial)	89 %
Murata Electronics UQQ-12/8-Q12P-C	12 V	8 A		1.45 in		0.43 in	56.4 mm	2.22 "	36 V	1	9 V	96 W	2250 VDC	Through Hole	Adjustable Output Remote On/Off Remote Sense	Active High Enable	Quarter Brick	Isolated Module	85 °C	-40 °C	ITE (Commercial)	89 %	36.8 mm	10.9 mm	Quarter Brick
