32961 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

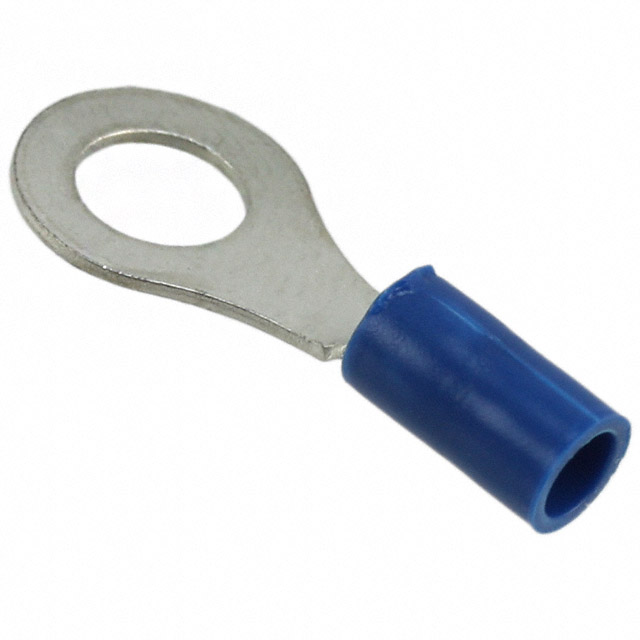

TERMINAL,PG R 16-14 1/4 ROHS COMPLIANT: YES
| Part | Insulation | Terminal Type | Mounting Type | Length - Overall [x] | Length - Overall [x] | Stud/Tab Size | Termination | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Min] [diameter] | Thickness | Thickness | Contact Material | Material - Insulation | Color | Width - Outer Edges [y] | Width - Outer Edges [y] | Contact Finish | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Insulated | Circular | Free Hanging (In-Line) | 1.09 in | 27.69 mm | 0.25 Stud | Crimp | 0.145 in 3.68 mm | 0.105 in | 2.67 mm | 0.031 in | 0.79 mm | Copper | Poly-Vinyl Chloride (PVC) | Blue | 11.91 mm | 0.469 in | Tin | Serrated Termination |
