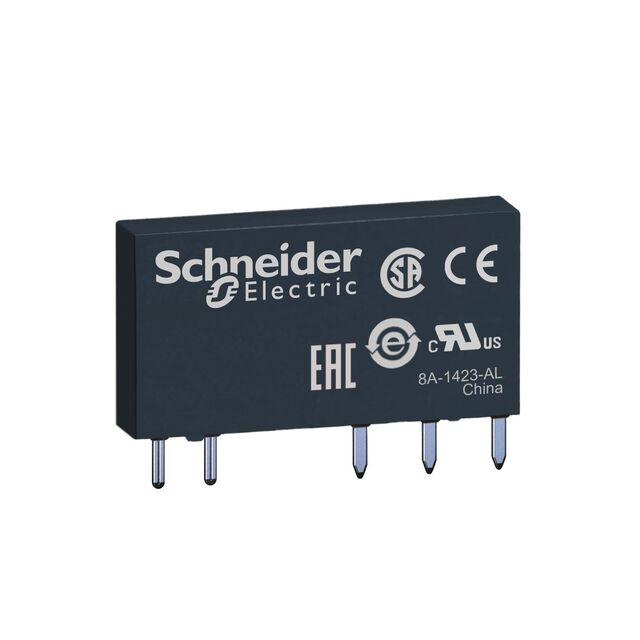

RSL1A Series
Manufacturer: SCHNEIDER ELECTRIC
Beta
⌘K
POWER RELAY, SPDT, 60 VDC, 6 A, RSL SERIES, THROUGH HOLE
| Part | Coil Resistance | Termination Style | Contact Rating (Current) | Approval Agency | Coil Current | Contact Form | Relay Type | Coil Voltage | Must Operate Voltage | Coil Type | Contact Material | Load - Max Switching | Switching Voltage [Max] | Operate Time | Operating Temperature [Max] | Operating Temperature [Min] | Must Release Voltage | Mounting Type | Release Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHNEIDER ELECTRIC | 16.6 kOhms | Plug In | 6 A | CSA EAC UL | 3.6 mA | SPDT (1 Form C) | General Purpose | 60 VDC | 45 VDC | Non Latching | Silver Tin Oxide (AgSnO) | 1662 VA | 277 VAC | 12 ms | 55 °C | -40 C | 3 VDC | Socketable | 5 ms |
 SCHNEIDER ELECTRIC | 848 Ohms | PC Pin | 6 A | CSA EAC UL | 14.2 mA | SPDT (1 Form C) | General Purpose | 12 VDC | 9 VDC | Non Latching | Silver Tin Oxide (AgSnO) | 1662 VA | 277 VAC | 5 ms | 55 °C | -40 C | 0.6 VDC | Through Hole | 12 ms |
 SCHNEIDER ELECTRIC | 10.6 kOhms | PC Pin | 6 A | CSA EAC UL | 4.5 mA | SPDT (1 Form C) | General Purpose | 48 VDC | 36 VDC | Non Latching | Silver Tin Oxide (AgSnO) | 1662 VA | 277 VAC | 12 ms | 55 °C | -40 C | 2.4 VDC | Through Hole | 5 ms |
SCHNEIDER ELECTRIC | 3.39 kOhms | Plug In | 6 A | CSA EAC UL | 7.1 mA | SPDT (1 Form C) | General Purpose | 24 VDC | 18 VDC | Non Latching | Silver Tin Oxide (AgSnO) | 1662 VA | 277 VAC | 12 ms | 55 °C | -40 C | 1.2 VDC | Socketable | 5 ms |
