0947-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

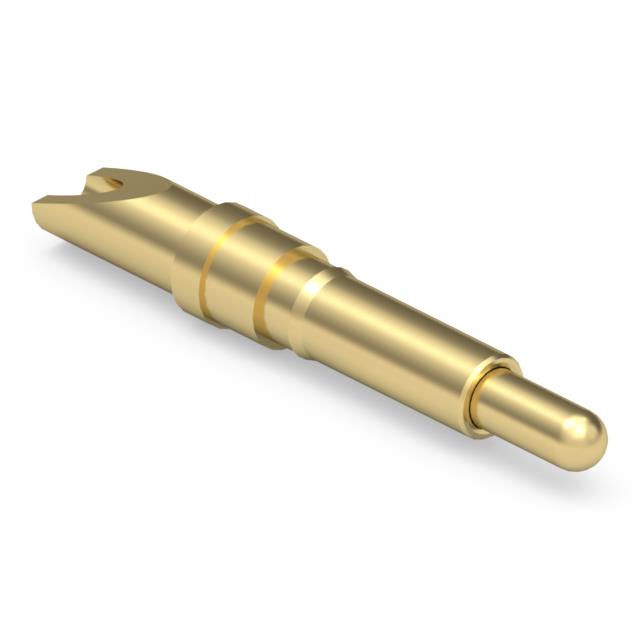

CONTACT SPRING LOADED SLDR CUP
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Pad Layout Dimension [diameter] | Pad Layout Dimension [diameter] | Plunger Size [diameter] | Plunger Size [diameter] | Features | Contact Material | Current Rating (Amps) | Operating Force - Mid Compression | Contact Finish Thickness | Contact Finish Thickness | Minimum Working Height [Min] | Minimum Working Height | Mating Cycles | Recommended Working Height | Recommended Working Height | Contact Type | Maximum Working Height [Max] | Maximum Working Height [Max] | Mounting Type | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 0.078 in | 1.98 mm | 0.042 in | 1.07 mm | 24 AWG | Brass Alloy | 5.2 A | 60 gf | 20 µin | 0.51 µm | 0.253 in | 6.43 mm | 1000000 | 7.58 mm | 0.298 in | Sleeve & Plunger (Pogo Pins) | 0.343 " | 8.72 mm | Solder Cup Through Hole | Gold |
