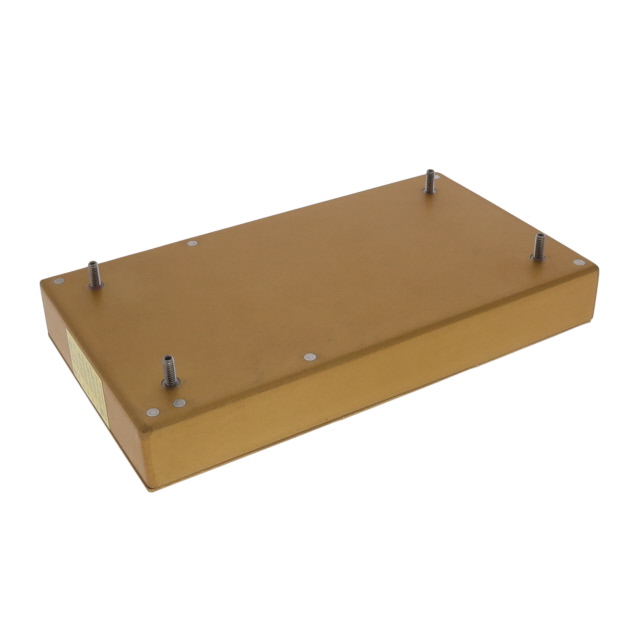

10C24 Series
Manufacturer: ULTRAVOLT / Advanced Energy
Beta
⌘K
DC DC CONVERTER 10000V 60W
| Part | Package / Case | Control Features | Voltage - Output 1 | Applications | Voltage - Input (Min) [Min] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Current - Output (Max) [Max] | Mounting Type | Voltage - Input (Max) [Max] | Power (Watts) | Operating Temperature [Min] | Operating Temperature [Max] | Number of Outputs | Type | Approval Agency | Features | Size / Dimension [y] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ULTRAVOLT / Advanced Energy | Module | Active High Enable | 10000 V | ITE (Commercial) | 23 V | 27 mm | 203.2 mm | 8 in | 114.3 mm | 1.06 in | 4.5 " | 6 mA | Through Hole | 30 V | 60 W | -40 C | 65 °C | 1 | High Voltage - Non-Isolated Module | CE cURus | |||
ULTRAVOLT / Advanced Energy | Module | Active Low Enable | 10000 V | ITE (Commercial) | 23 V | 27 mm | 203.2 mm | 8 in | 114.3 mm | 1.06 in | 4.5 " | 12.5 mA | Through Hole | 30 V | 60 W | -40 C | 65 °C | 1 | High Voltage - Non-Isolated Module | CE cURus | |||
 ULTRAVOLT / Advanced Energy | Module | Active High Enable | 10000 V | ITE (Commercial) | 23 V | 27 mm | 203.2 mm | 8 in | 114.3 mm | 1.06 in | 4.5 " | 12.5 mA | Through Hole | 30 V | 60 W | -40 C | 65 °C | 1 | High Voltage - Non-Isolated Module | CE cURus | |||
ULTRAVOLT / Advanced Energy | Module | Active High Enable | 10000 V | ITE (Commercial) | 23 V | 37.2 mm | 203.2 mm | 8 in | 114.3 mm | 1.46 in | 4.5 " | 12.5 mA | Through Hole | 30 V | 15 W | -40 C | 65 °C | 1 | High Voltage - Non-Isolated Module | CE cURus | Heat Sink | ||
ULTRAVOLT / Advanced Energy | Module | Active High Enable | 10000 V | ITE (Commercial) | 23 V | 27 mm | 203.2 mm | 8 in | 114.3 mm | 1.06 in | 4.5 " | 6 mA | Through Hole | 30 V | 60 W | -40 C | 65 °C | 1 | High Voltage - Non-Isolated Module | CE cURus | |||
ULTRAVOLT / Advanced Energy | Module | Active Low Enable | 10000 V | ITE (Commercial) | 23 V | 27 mm | 203.2 mm | 8 in | 114.3 mm | 1.06 in | 4.5 " | 6 mA | Through Hole | 30 V | 60 W | -40 C | 65 °C | 1 | High Voltage - Non-Isolated Module | CE cURus | |||
ULTRAVOLT / Advanced Energy | Module | Active High Enable | 10000 V | ITE (Commercial) | 23 V | 27 mm | 203.2 mm | 8 in | 114.3 mm | 1.06 in | 4.5 " | 6 mA | Through Hole | 30 V | 60 W | -40 C | 65 °C | 1 | High Voltage - Non-Isolated Module | CE cURus | |||
ULTRAVOLT / Advanced Energy | Module | Active High Enable | 10000 V | ITE (Commercial) | 23 V | 235 mm | 9.25 " | 2.03 in | 4.5 " | 25 mA | Through Hole | 30 V | 60 W | -40 C | 65 °C | 1 | High Voltage - Non-Isolated Module | CE cURus | 114.3 mm | 51.6 mm |
