C0G(NP0) HV Series

Catalog

MULTILAYER CERAMIC CAPACITORS MLCC - SMD/SMT KGM32HCG3A331KU NEW GLOBAL PN R102 HIGH A 581-KGM32HCG3A331KU

Part	Thickness (Max) [Max]	Thickness (Max) [Max]	Applications	Tolerance	Mounting Type	Voltage - Rated	Voltage - Rated	Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Capacitance	Package / Case	Package / Case	Temperature Coefficient	Operating Temperature [Min]	Operating Temperature [Max]	Thickness (Max)	Thickness (Max) [Max] [z]	Thickness (Max) [Max] [z]	Size / Dimension [y]	Thickness (Max) [Max] [custom]	Thickness (Max) [Max] [custom]	Voltage - Rated [Min]	Voltage - Rated [Max]

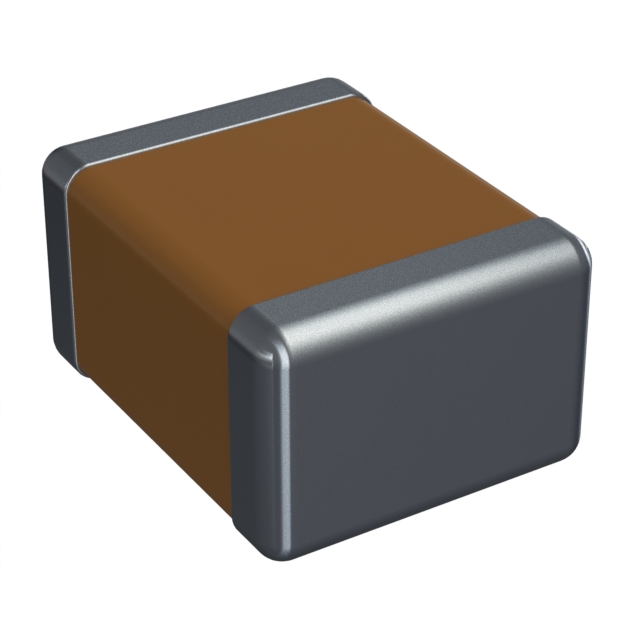

KYOCERA AVX 1210AA331KAT2A	1.8 mm	0.071 in	General Purpose	10 %	MLCC Surface Mount	1 kV	1000 V	High Voltage	3.3 mm	2.5 mm	0.13 "	0.098 in	330 pF	1210	3225 Metric	C0G NP0	-55 C	125 °C
KYOCERA AVX 2225AA822KAT1A		0.1 in	General Purpose	10 %	MLCC Surface Mount	1 kV	1000 V	High Voltage	5.72 mm	6.35 mm	0.225 in	0.25 in		2225 (5763 Metric)		C0G NP0	-55 C	125 °C	2.54 mm

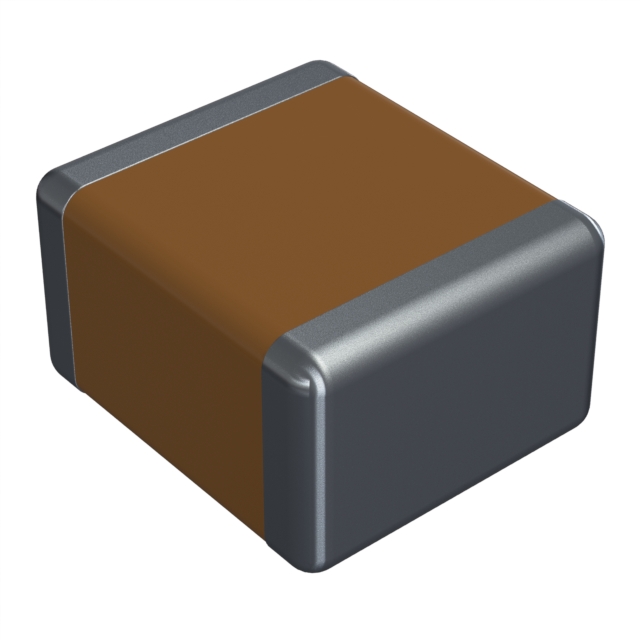

KYOCERA AVX 2220AA103JAT1A			General Purpose	5 %	MLCC Surface Mount	1 kV	1000 V	High Voltage	5.7 mm		0.224 "	0.197 "	10000 pF	2220	5750 Metric	C0G NP0	-55 C	125 °C		0.13 in	3.3 mm	5 mm
KYOCERA AVX 1210AA101KAT1A	1.8 mm	0.071 in	General Purpose	10 %	MLCC Surface Mount	1 kV	1000 V	High Voltage	3.3 mm	2.5 mm	0.13 "	0.098 in	100 pF	1210	3225 Metric	C0G NP0	-55 C	125 °C
KYOCERA AVX 1812WA331KAT2A			General Purpose	10 %	MLCC Surface Mount	2.5 kV	2.5 kV	High Voltage	4.6 mm	3.2 mm	0.181 in	0.126 in	330 pF	1812 (4532 Metric)		C0G NP0	-55 C	125 °C					0.087 in	2.2 mm
KYOCERA AVX 1812CA102JAT3A	1.45 mm	0.057 "	General Purpose	5 %	MLCC Surface Mount			High Voltage	4.6 mm	3.2 mm	0.181 in	0.126 in	0.001 µF	1812 (4532 Metric)		C0G NP0	-55 C	125 °C							600 V	630 V
KYOCERA AVX 1812HA101KAT1A	1.45 mm	0.057 "	General Purpose	10 %	MLCC Surface Mount	3 kV	3000 V	High Voltage	4.6 mm	3.2 mm	0.181 in	0.126 in	100 pF	1812 (4532 Metric)		C0G NP0	-55 C	125 °C
KYOCERA AVX 1808HA100JAT2A	1.8 mm	0.071 in	General Purpose	5 %	MLCC Surface Mount	3 kV	3000 V	High Voltage	4.6 mm	2 mm	0.181 in	0.079 in	10 pF	1808 (4520 Metric)		C0G NP0	-55 C	125 °C
KYOCERA AVX 1808GA560KAT1A	1.45 mm	0.057 "	General Purpose	10 %	MLCC Surface Mount	2 kV	2000 V	High Voltage	4.6 mm	2 mm	0.181 in	0.079 in	56 pF	1808 (4520 Metric)		C0G NP0	-55 C	125 °C
KYOCERA AVX 1808AA470JAT1A	1.45 mm	0.057 "	General Purpose	5 %	MLCC Surface Mount	1 kV	1000 V	High Voltage	4.6 mm	2 mm	0.181 in	0.079 in	47 pF	1808 (4520 Metric)		C0G NP0	-55 C	125 °C
