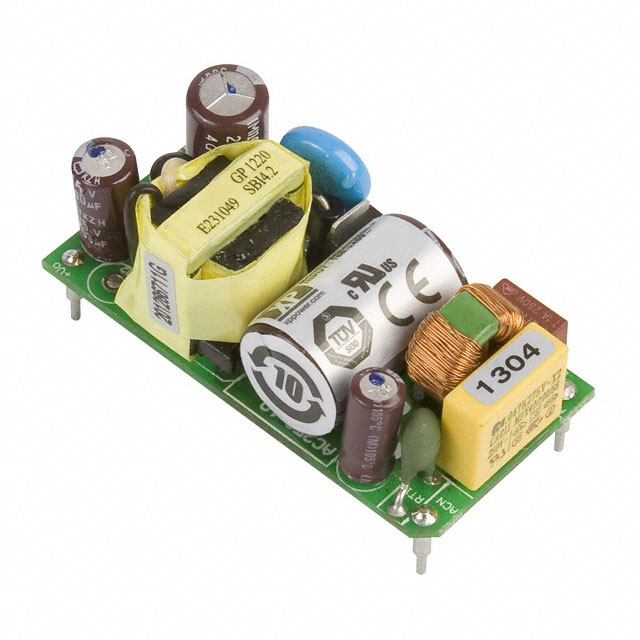

ECL10US09 Series
Manufacturer: XP Power
Beta
⌘K
AC/DC CONVERTER 9V 10W
| Part | Weight | Weight | Line Regulation | Load Regulation | Number of Outputs | Voltage - Output 1 | Type | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Power (Watts) | Approval Agency | Efficiency | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Standard Number | Applications | Features | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 XP Power | 0.057 lb | 25.85 g | 0.5 % | ±1% | 1 | 9 V | Open Frame | 22.9 mm | 1 " | 2 in | 25.4 mm | 50.8 mm | 0.9 in | 10 W | CSA cUL EN IEC UL | 78 % | 70 °C | -20 °C | Through Hole | 62368-1 | ITE (Commercial) | Universal Input | 4-DIP Module |
 XP Power | 0.132 lb | 59.87 g | 0.5 % | ±1% | 1 | 9 V | Enclosed | 23 mm | 1.07 in | 2.06 " | 27.2 mm | 52.3 mm | 0.91 in | 10 W | CSA cUL EN IEC UL | 78 % | 70 °C | -20 °C | Through Hole | 62368-1 | ITE (Commercial) | Universal Input | 4-DIP Module |
