PXP4013 Series
Manufacturer: BULGIN LIMITED
Beta
⌘K
CONN RCPT HSG FMALE 4POS PNL MT
| Part | Contact Shape | Shell Material | Number of Positions | Features | Fastening Type | Material Flammability Rating | Includes | Type | Mounting Type | Mounting Feature | Note | Contact Type | Primary Material | Connector Type | Ingress Protection | Orientation | Housing Color | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish - Mating | Contact Material | Termination | Current Rating (Amps) | Color | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

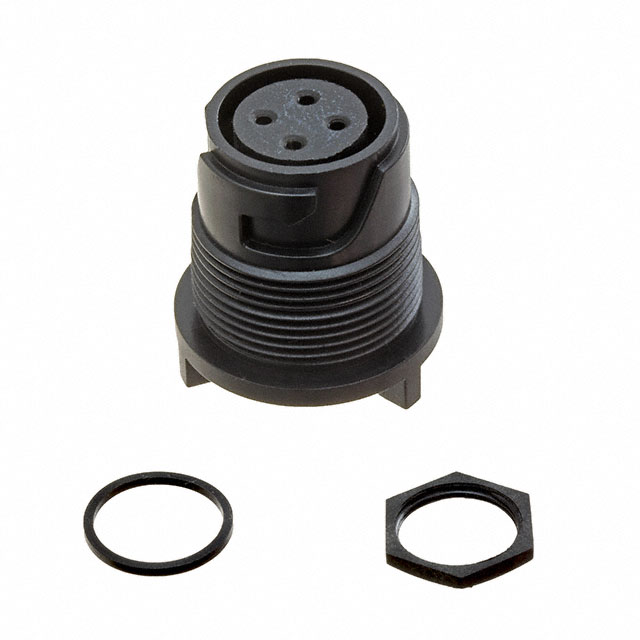

 BULGIN LIMITED | Circular | Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT) | 4 | UV Resistant | Bayonet Lock | UL94 V-0 | 1 Nut 1 Washer 3 pcs - 1 Connector | For Female Sockets | Panel Mount Through Hole | Bulkhead - Front Side Nut | Contacts Not Included | Crimp and Solder Cup | Plastic | Receptacle Housing | IP66 IP68 IP69K | Keyed | Black | Unshielded | 120 °C | -40 C | ||||||
 BULGIN LIMITED | Circular | Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT) | 12 | UV Resistant | Bayonet Lock | UL94 V-0 | 1 Nut 1 Washer 3 pcs - 1 Connector | For Female Sockets | Panel Mount | Bulkhead - Front Side Nut | Contacts Not Included | Crimp and Solder Cup | Plastic | Receptacle Housing | IP66 IP68 IP69K | Keyed | Black | Unshielded | 120 °C | -40 C | ||||||
 BULGIN LIMITED | Circular | Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT) | 8 | UV Resistant | Bayonet Lock | UL94 V-0 | 1 Nut 1 Washer 3 pcs - 1 Connector | For Female Sockets | Panel Mount | Bulkhead - Front Side Nut | Contacts Not Included | Crimp and Solder Cup | Plastic | Receptacle Housing | IP66 IP68 IP69K | Keyed | Black | Unshielded | 120 °C | -40 C | ||||||
 BULGIN LIMITED | Circular | Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT) | 12 | UV Resistant | Bayonet Lock | UL94 V-0 | 1 Nut 1 Washer 3 pcs - 1 Connector | For Male Pins | Panel Mount | Bulkhead - Front Side Nut | Contacts Not Included | Crimp and Solder Cup | Plastic | Receptacle Housing | IP66 IP68 IP69K | Keyed | Black | Unshielded | 120 °C | -40 C | ||||||
 BULGIN LIMITED | Circular | Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT) | 4 | UV Resistant | Bayonet Lock | UL94 V-0 | 1 Nut 1 Washer 3 pcs - 1 Connector | For Male Pins | Panel Mount Through Hole | Bulkhead - Front Side Nut | Contacts Not Included | Crimp and Solder Cup | Plastic | Receptacle Housing | IP66 IP68 IP69K | Keyed | Black | Unshielded | 120 °C | -40 C | ||||||
 BULGIN LIMITED | Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT) | 10 | UV Resistant | Bayonet Lock | UL94 V-0 | Panel Mount Through Hole | Bulkhead - Front Side Nut | Plastic | Receptacle Male Pins | IP66 IP68 IP69K | Keyed | Unshielded | 120 °C | -40 C | Gold | Copper Alloy | Solder | 3 A | Black | 600 VAC | ||||||
 BULGIN LIMITED | Circular | Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT) | 3 | UV Resistant | Bayonet Lock | UL94 V-0 | 1 Nut 1 Washer 3 pcs - 1 Connector | For Male Pins | Panel Mount | Bulkhead - Front Side Nut | Contacts Not Included | Crimp and Solder Cup | Plastic | Receptacle Housing | IP66 IP68 IP69K | Keyed | Black | Unshielded | 120 °C | -40 C | ||||||

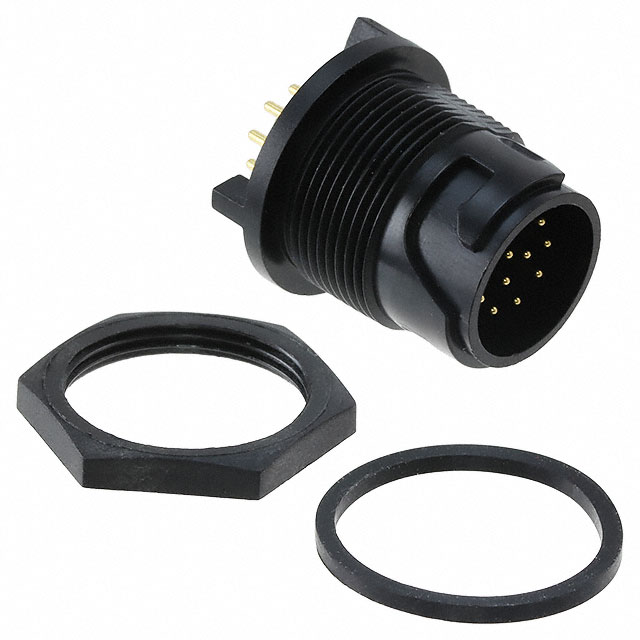

 BULGIN LIMITED | Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT) | 12 | UV Resistant | Bayonet Lock | UL94 V-0 | Panel Mount Through Hole | Bulkhead - Front Side Nut | Plastic | Receptacle Male Pins | IP66 IP68 IP69K | Keyed | Unshielded | 120 °C | -40 C | Gold | Copper Alloy | Solder | 3 A | Black | 600 VAC | ||||||
BULGIN LIMITED | Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT) | 12 | UV Resistant | Bayonet Lock | UL94 V-0 | Panel Mount Through Hole | Bulkhead - Front Side Nut | Plastic | Receptacle Female Sockets | IP66 IP68 IP69K | Keyed | Unshielded | 120 °C | -40 C | Gold | Copper Alloy | Solder | 3 A | Black | 600 VAC | ||||||
 BULGIN LIMITED | Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT) | 10 | UV Resistant | Bayonet Lock | UL94 V-0 | Panel Mount Through Hole | Bulkhead - Front Side Nut | Plastic | Receptacle Female Sockets | IP66 IP68 IP69K | Keyed | Unshielded | 120 °C | -40 C | Gold | Copper Alloy | Solder | 3 A | Black | 600 VAC |
