6380-2PG Series

Catalog

MINI-CON-X CABLE END, 2-PIN #16, MALE, CRIMP, BULK

Part	Shielding	Ingress Protection	Number of Positions	Contact Material	Features	Backshell Material, Plating	Connector Type	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Primary Material	Orientation	Fastening Type	Applications	Voltage Rating	Termination	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Min]	Color	Mounting Type	Cable Opening [Max]
SWITCHCRAFT/CONXALL 6380-2PG-516	Unshielded	Weathertight	2	Brass	Backshell	Nylon Polyamide (PA)	Plug Male Pins	Varies by Wire Gauge	115 °C	-40 C	Gold	Plastic	Keyed	Bayonet Lock	Automotive Communication Systems Instrumentation	600 V	Crimp	4.57 mm	0.16 "	0.18 "	4.06 mm	Black	Free Hanging (In-Line)

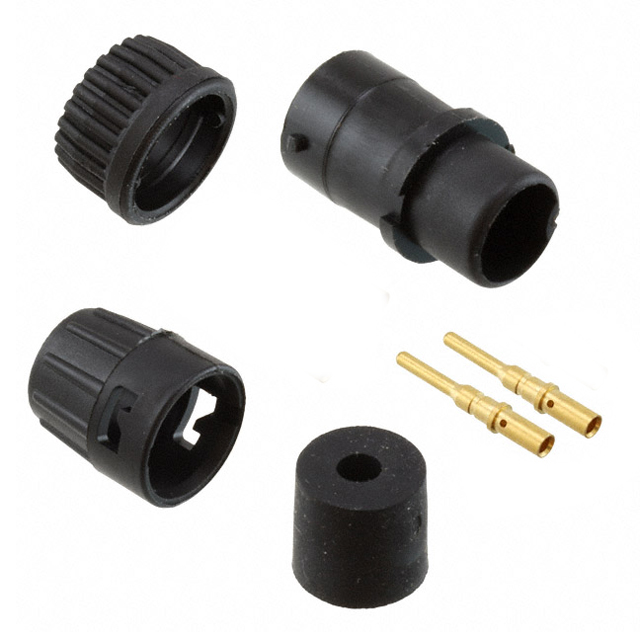

SWITCHCRAFT/CONXALL 6380-2PG-318	Unshielded	Weathertight	2	Brass	Backshell	Nylon Polyamide (PA)	Plug Male Pins	Varies by Wire Gauge	115 °C	-40 C	Gold	Plastic	Keyed	Bayonet Lock	Automotive Communication Systems Instrumentation	600 V	Crimp	5.08 mm	0.18 "	0.2 "	4.57 mm	Black	Free Hanging (In-Line)
SWITCHCRAFT/CONXALL 6380-2PG-311	Unshielded	Weathertight	2	Brass	Backshell	Nylon Polyamide (PA)	Plug Male Pins	Varies by Wire Gauge	115 °C	-40 C	Gold	Plastic	Keyed	Bayonet Lock	Automotive Communication Systems Instrumentation	600 V	Crimp		0.09 in	0.14 in	2.29 mm	Black	Free Hanging (In-Line)	3.56 mm
SWITCHCRAFT/CONXALL 6380-2PG-513	Unshielded	Weathertight	2	Brass	Backshell	Nylon Polyamide (PA)	Plug Male Pins	Varies by Wire Gauge	115 °C	-40 C	Gold	Plastic	Keyed	Bayonet Lock	Automotive Communication Systems Instrumentation	600 V	Crimp	3.81 mm	0.13 "	0.15 in	3.3 mm	Black	Free Hanging (In-Line)
SWITCHCRAFT/CONXALL 6380-2PG-315	Unshielded	Weathertight	2	Brass	Backshell	Nylon Polyamide (PA)	Plug Male Pins	Varies by Wire Gauge	115 °C	-40 C	Gold	Plastic	Keyed	Bayonet Lock	Automotive Communication Systems Instrumentation	600 V	Crimp	4.32 mm	0.15 "	0.17 in	3.81 mm	Black	Free Hanging (In-Line)
