FASTON 125 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

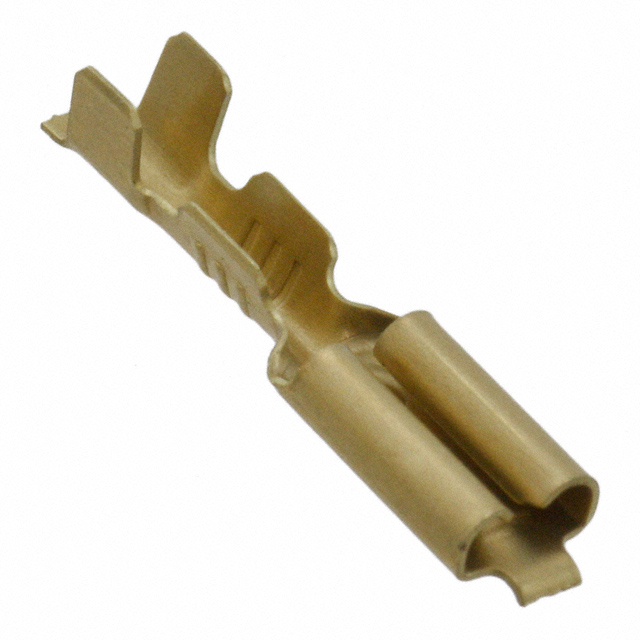

125 FASTON REC 22-18 AWG BR
| Part | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Tab Width | Tab Width | Contact Material | Gender | Termination | Tab Thickness | Tab Thickness | Insulation | Tab Length | Tab Length | Terminal Type | Mounting Type | Wire Gauge [Max] | Wire Gauge [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 2.79 mm | 2.29 mm | 0.09 in | 0.11 in | 3.18 mm | 0.125 in | Brass | Female | Crimp | 0.02 in | 0.51 mm | Non-Insulated | 0.25 in | 6.35 mm | Standard | Free Hanging (In-Line) | 22 AWG | 17.5 AWG |
