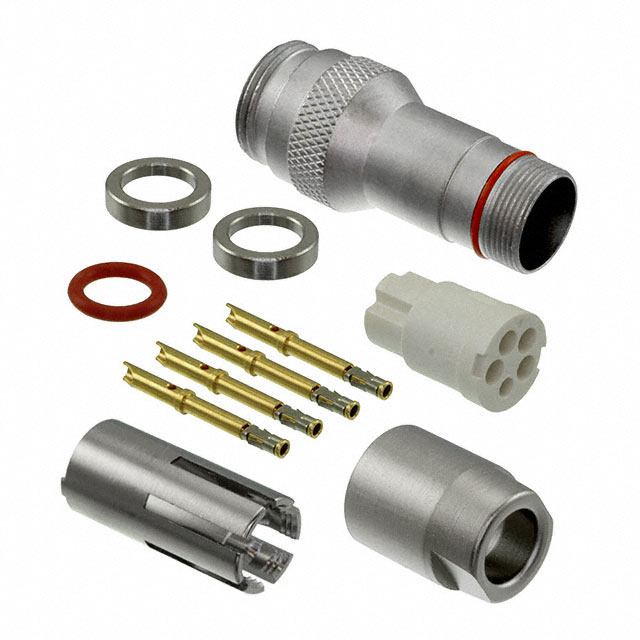

TS2L4F Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K
CONN RCPT FMALE 4POS GOLD CRIMP
| Part | Termination | Cable Opening [Min] | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Max] | Number of Positions | Contact Finish - Mating | Fastening Type | Applications | Primary Material | Voltage Rating | Features | Ingress Protection | Shell Finish | Shell Material | Backshell Material, Plating | Operating Temperature [Min] | Operating Temperature [Max] | Orientation | Contact Material | Mounting Type | Color | Insert Material | Connector Type | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | Crimp Solder Cup | 4.57 mm | 0.18 " | 5.49 mm | 0.216 in | 4 | Gold | Threaded | Agriculture Audio General Medical Testing Equipment & Measurement | Metal | 125 VAC | Backshell | IP66 IP67 IP68 | Electroless Nickel | Copper Alloy | Copper Alloy Nickel | -40 C | 135 °C | Keyed | Copper Alloy | Free Hanging (In-Line) | Silver | Liquid Crystal Polymer (LCP) | Receptacle Female Sockets | Shielded |
