10073456 Series

Catalog

CONN HEADER VERT

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Overall Contact Length	Overall Contact Length	Mounting Type	Style	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Insulation Height	Insulation Height	Number of Rows [custom]	Contact Type	Features	Contact Finish - Mating	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Contact Shape	Termination	Overall Contact Length	Contact Length - Post [x]	Contact Length - Post [x]	Contact Material	Insulation Material	Contact Length - Mating	Contact Length - Mating	Number of Positions	Insulation Color	Fastening Type	Shrouding	Contact Length - Post	Contact Length - Post	Number of Positions [custom]
Amphenol ICC (FCI) 10073456-018LF	40 Áin	1.02 Ám	1.083 in	1.083 in 27.51 mm	Through Hole	Board to Cable/Wire	0.1 "	2.54 mm	All	0.365 in	9.27 mm	2	Male Pin	Keying Slot	Gold GXT™	Tin	0.76 Ám	30 Áin	UL94 V-0	0.1 in	2.54 mm	Header	Square	Press-Fit Solder	27.5 mm	0.733 in	18.62 mm	Phosphor Bronze	Polyester Glass Filled	0.23 in	5.84 mm	16	Blue	Push-Pull	Shrouded - 4 Wall
Amphenol ICC (FCI) 10073456-028LF	40 Áin	1.02 Ám	0.96 in	24.38 mm	Through Hole	Board to Cable/Wire	0.1 "	2.54 mm	All	0.365 in	9.27 mm	2	Male Pin	Keying Slot	Gold GXT™	Tin	0.76 Ám	30 Áin	UL94 V-0	0.1 in	2.54 mm	Header	Square	Press-Fit Solder				Phosphor Bronze	Polyester Glass Filled	0.23 in	5.84 mm	24	Blue	Push-Pull	Shrouded - 4 Wall	0.61 in	15.49 mm 15.5 mm
Amphenol ICC (FCI) 10073456-002LF	40 Áin	1.02 Ám			Through Hole	Board to Board Cable	0.1 "	2.54 mm	All	0.365 in	9.27 mm	2	Male Pin	Keying Slot	Gold GXT™	Tin	0.76 Ám	30 Áin	UL94 V-0	0.1 in	2.54 mm	Header	Square	Press-Fit Solder				Phosphor Bronze	Polyester Glass Filled	0.23 in	5.84 mm	10	Blue	Push-Pull	Shrouded - 4 Wall	0.16 in	4.06 mm
Amphenol ICC (FCI) 10073456-016LF	40 Áin	1.02 Ám	0.96 in	24.38 mm	Through Hole	Board to Cable/Wire	0.1 "	2.54 mm	All	0.365 in	9.27 mm	2	Male Pin	Keying Slot	Gold GXT™	Tin	0.76 Ám	30 Áin	UL94 V-0	0.1 in	2.54 mm	Header	Square	Press-Fit Solder				Phosphor Bronze	Polyester Glass Filled	0.23 in	5.84 mm	16	Blue	Push-Pull	Shrouded - 4 Wall	0.61 in	15.49 mm 15.5 mm
Amphenol ICC (FCI) 10073456-061LF	40 Áin	1.02 Ám			Through Hole	Board to Board Cable	0.1 "	2.54 mm	All	0.365 in	9.27 mm	2	Male Pin	Keying Slot	Gold	Tin	0.76 Ám	30 Áin	UL94 V-0	0.1 in	2.54 mm	Header	Square	Press-Fit Solder				Phosphor Bronze	Polyester Glass Filled	0.23 in	5.84 mm	50	Blue	Push-Pull	Shrouded - 4 Wall	0.16 in	4.06 mm
Amphenol ICC (FCI) 10073456-004LF	40 Áin	1.02 Ám	0.96 in	24.38 mm	Through Hole	Board to Cable/Wire	0.1 "	2.54 mm	All	0.365 in	9.27 mm	2	Male Pin	Keying Slot	Gold GXT™	Tin	0.76 Ám	30 Áin	UL94 V-0	0.1 in	2.54 mm	Header	Square	Press-Fit Solder				Phosphor Bronze	Polyester Glass Filled	0.23 in	5.84 mm	10	Blue	Push-Pull	Shrouded - 4 Wall	0.61 in	15.49 mm 15.5 mm
Amphenol ICC (FCI) 10073456-045LF	40 Áin	1.02 Ám	0.96 in	24.38 mm	Through Hole	Board to Cable/Wire	0.1 "	2.54 mm	All	0.365 in	9.27 mm	2	Male Pin	Keying Slot	Gold	Tin	0.76 Ám	30 Áin	UL94 V-0	0.1 in	2.54 mm	Header	Square	Press-Fit Solder				Phosphor Bronze	Polyester Glass Filled	0.23 in	5.84 mm		Blue	Push-Pull	Shrouded - 4 Wall	0.61 in	15.49 mm 15.5 mm	34
Amphenol ICC (FCI) 10073456-072LF	40 Áin	1.02 Ám	1.083 in	1.083 in 27.51 mm	Through Hole	Board to Cable/Wire	0.1 "	2.54 mm	All	0.365 in	9.27 mm	2	Male Pin	Keying Slot	Gold GXT™	Tin	0.76 Ám	30 Áin	UL94 V-0	0.1 in	2.54 mm	Header	Square	Press-Fit Solder	27.5 mm	0.733 in	18.62 mm	Phosphor Bronze	Polyester Glass Filled	0.23 in	5.84 mm	60	Blue	Push-Pull	Shrouded - 4 Wall

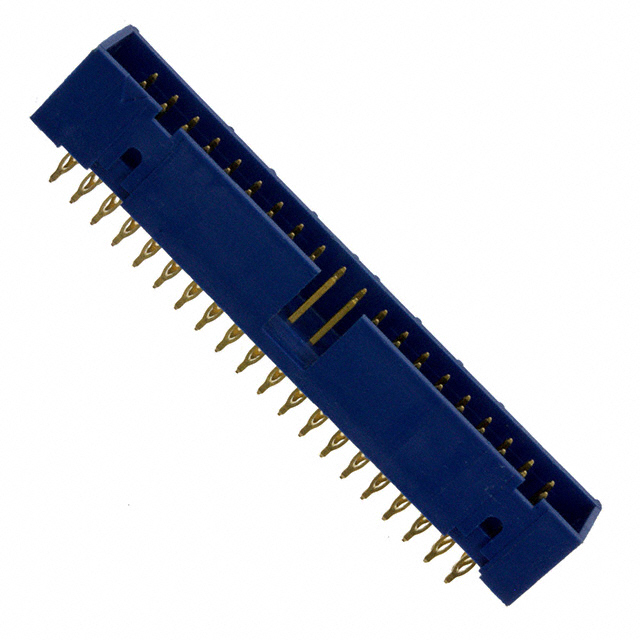

Amphenol ICC (FCI) 10073456-049LF	40 Áin	1.02 Ám			Through Hole	Board to Cable/Wire	0.1 "	2.54 mm	All	0.365 in	9.27 mm	2	Male Pin	Keying Slot	Gold	Tin	0.76 Ám	30 Áin	UL94 V-0	0.1 in	2.54 mm	Header	Square	Press-Fit Solder				Phosphor Bronze	Polyester Glass Filled	0.23 in	5.84 mm	40	Blue	Push-Pull	Shrouded - 4 Wall	0.16 in	4.06 mm
Amphenol ICC (FCI) 10073456-047LF	40 Áin	1.02 Ám	1.083 in	1.083 in 27.51 mm	Through Hole	Board to Cable/Wire	0.1 "	2.54 mm	All	0.365 in	9.27 mm	2	Male Pin	Keying Slot	Gold	Tin	0.76 Ám	30 Áin	UL94 V-0	0.1 in	2.54 mm	Header	Square	Press-Fit Solder	27.5 mm	0.733 in	18.62 mm	Phosphor Bronze	Polyester Glass Filled	0.23 in	5.84 mm		Blue	Push-Pull	Shrouded - 4 Wall			34
