LTC6754 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

HIGH SPEED RAIL-TO-RAIL INPUT COMPARATOR WITH LVDS COMPATIBLE OUTPUTS

Part	Current - Output (Typ)	Type	Output Type	Voltage - Input Offset (Max) [Max]	Package / Case	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Supply, Single/Dual (±) [Max]	Propagation Delay (Max) [Max]	Mounting Type	Hysteresis	Current - Input Bias (Max)	CMRR, PSRR (Typ)	Current - Quiescent (Max) [Max]	Number of Elements	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package
Analog Devices Inc./Maxim Integrated LTC6754ISC6#TRPBF	11 mA	Standard (General Purpose)	LVDS	4 mV	6-TSSOP SC-88 SOT-363	2.4 V	5.25 V	2.8 ns	Surface Mount	4.5 mV	1.5 µA	77 dB 80 dB	14.7 mA	1	85 °C	-40 C	SC-70-6
Analog Devices Inc./Maxim Integrated LTC6754ISC6#TRMPBF	11 mA	General Purpose Standard (General Purpose)	LVDS	4 mV	6-TSSOP SC-88 SOT-363	2.4 V	5.25 V	2.8 ns	Surface Mount	4.5 mV	1.5 µA	77 dB 80 dB	14.7 mA	1	85 °C	-40 C	SC-70-6
Analog Devices Inc./Maxim Integrated LTC6754HSC6#TRPBF	11 mA	General Purpose Standard (General Purpose)	LVDS	4 mV	6-TSSOP SC-88 SOT-363	2.4 V	5.25 V	2.8 ns	Surface Mount	4.5 mV	1.5 µA	77 dB 80 dB	14.7 mA	1	125 °C	-40 C	SC-70-6
Analog Devices Inc./Maxim Integrated LTC6754HSC6#PBF	11 mA	General Purpose Standard (General Purpose)	LVDS	4 mV	6-TSSOP SC-88 SOT-363	2.4 V	5.25 V	2.8 ns	Surface Mount	4.5 mV	1.5 µA	77 dB 80 dB	14.7 mA	1	125 °C	-40 C	SC-70-6

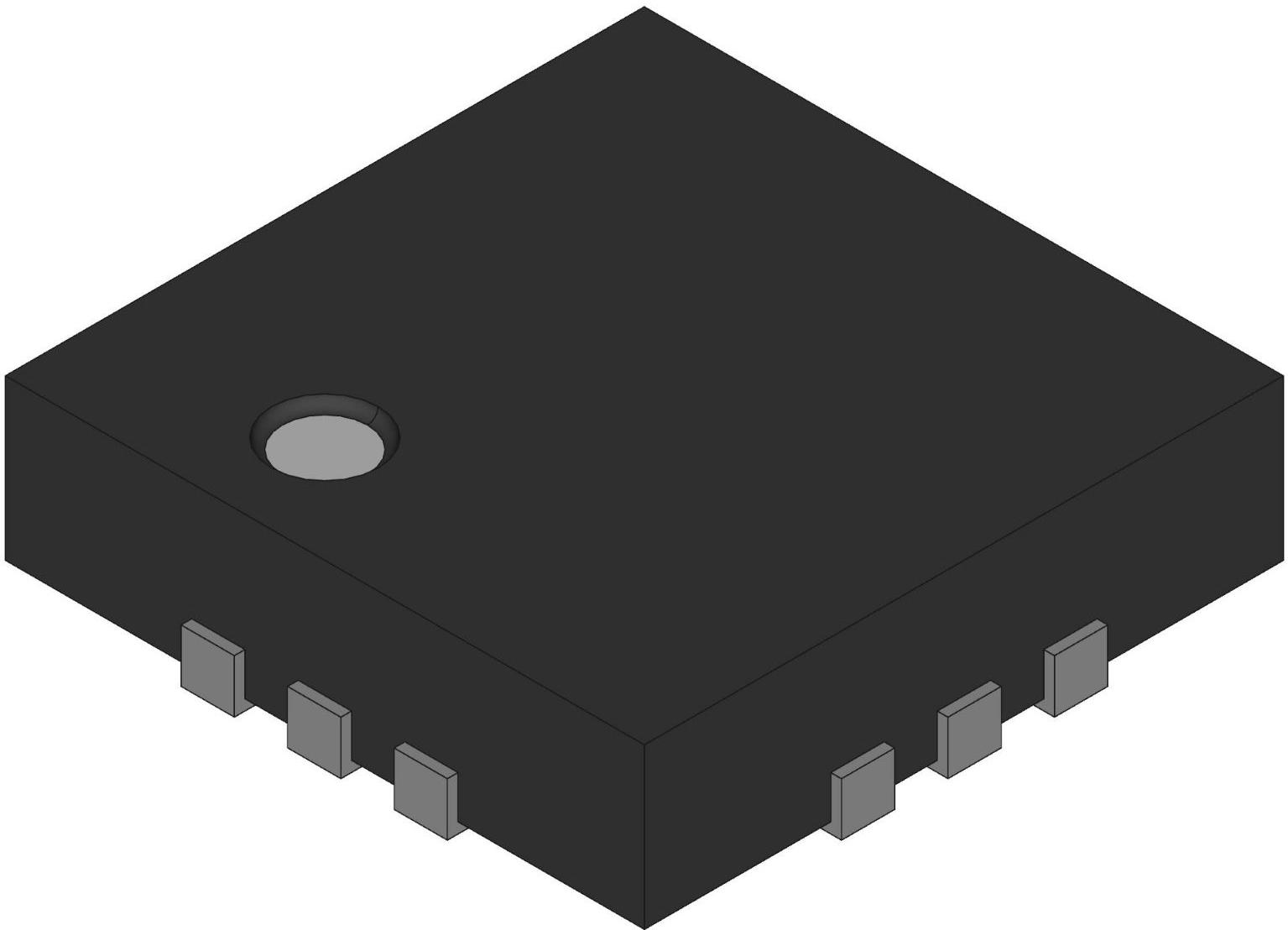

Analog Devices Inc./Maxim Integrated LTC6754IUD#TRPBF	11 mA	General Purpose Standard (General Purpose)	LVDS	4 mV	12-WFQFN Exposed Pad	2.4 V	5.25 V	2.8 ns	Surface Mount	4.5 mV	1.5 µA	77 dB 80 dB	14.7 mA	1	85 °C	-40 C	12-QFN (3x3)
Analog Devices Inc./Maxim Integrated LTC6754IUD#PBF	11 mA	General Purpose Standard (General Purpose)	LVDS	4 mV	12-WFQFN Exposed Pad	2.4 V	5.25 V	2.8 ns	Surface Mount	4.5 mV	1.5 µA	77 dB 80 dB	14.7 mA	1	85 °C	-40 C	12-QFN (3x3)
Analog Devices Inc./Maxim Integrated LTC6754HUD#PBF	11 mA	Standard (General Purpose)	LVDS	4 mV	12-WFQFN Exposed Pad	2.4 V	5.25 V	2.8 ns	Surface Mount	4.5 mV	1.5 µA	77 dB 80 dB	14.7 mA	1	125 °C	-40 C	12-QFN (3x3)
Analog Devices Inc./Maxim Integrated LTC6754HSC6#TRMPBF	11 mA	General Purpose Standard (General Purpose)	LVDS	4 mV	6-TSSOP SC-88 SOT-363	2.4 V	5.25 V	2.8 ns	Surface Mount	4.5 mV	1.5 µA	77 dB 80 dB	14.7 mA	1	125 °C	-40 C	SC-70-6
Analog Devices Inc./Maxim Integrated LTC6754HUD#TRPBF	11 mA	Standard (General Purpose)	LVDS	4 mV	12-WFQFN Exposed Pad	2.4 V	5.25 V	2.8 ns	Surface Mount	4.5 mV	1.5 µA	77 dB 80 dB	14.7 mA	1	125 °C	-40 C	12-QFN (3x3)
