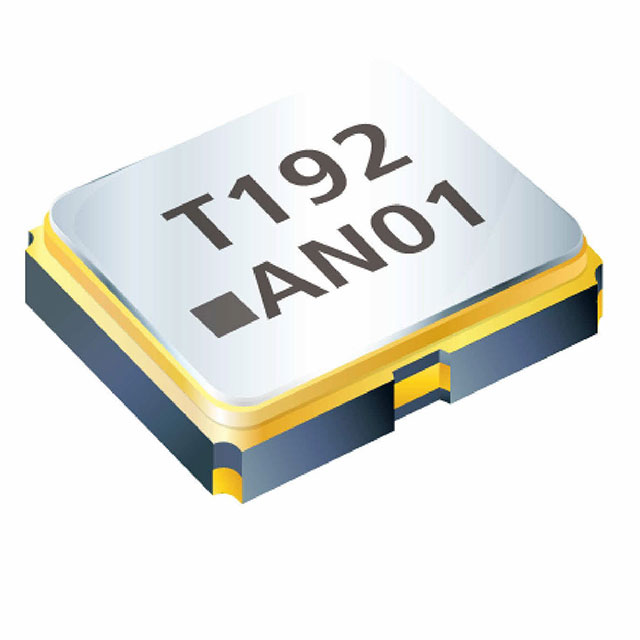

8W Series

Catalog

OSCILLATOR, 20 MHZ, 50 PPM, SMD, 2.5MM X 2MM, CMOS, 3.3 V, 8W SERIES

Part	Mounting Type	Output	Package / Case	Frequency Stability	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Type	Current - Supply (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage - Supply	Function	Base Resonator [custom]	Frequency
TXC CORPORATION 8W-20.000MBB-T	Surface Mount	CMOS	4-SMD No Lead	50 ppm	2.5 mm	0.079 in	0.098 in	2 mm	XO (Standard)	15 mA	70 °C	-10 °C	0.035 in	0.9 mm	3.3 V	Enable/Disable	Crystal	20 MHz
TXC CORPORATION 8W-50.000MDB-T	Surface Mount	CMOS	4-SMD No Lead	50 ppm	2.5 mm	0.079 in	0.098 in	2 mm	XO (Standard)	10 mA	70 °C	-10 °C	0.035 in	0.9 mm	1.8 V	Enable/Disable	Crystal	50 MHz
TXC CORPORATION 8W49170003	Surface Mount	CMOS	4-SMD No Lead	25 ppm	2.5 mm	0.079 in	0.098 in	2 mm	XO (Standard)	10 mA	85 °C	-40 C	0.035 in	0.9 mm	3.3 V	Enable/Disable	Crystal	49.156915 MHz
