1971938 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

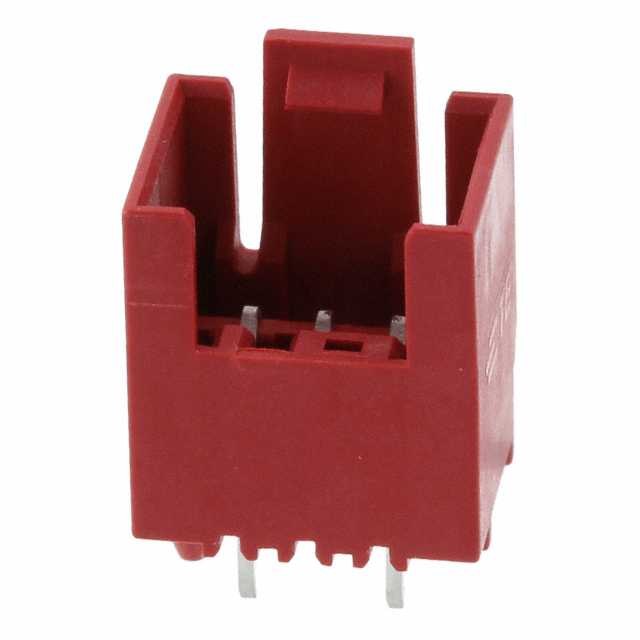

CONN HEADER VERT 3POS 2.5MM
| Part | Applications | Pitch - Mating | Pitch - Mating | Contact Length - Post [x] | Contact Length - Post [x] | Features | Material Flammability Rating | Contact Type | Fastening Type | Contact Finish - Post | Connector Type | Contact Shape | Shrouding | Mounting Type | Contact Material | Insulation Color | Style | Number of Rows | Insulation Material | Insulation Height | Insulation Height | Number of Positions Loaded | Operating Temperature [Max] | Operating Temperature [Min] | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | General Purpose | 2.5 mm | 0.098 in | 0.114 in | 2.9 mm | Board Guide Glow Wire Compliant | UL94 V-0 | Tab | Locking Ramp | Tin | Header | Rectangular | Shrouded - 4 Wall | Through Hole | Copper Alloy | Red | Board to Cable/Wire | 1 | Nylon Polyamide (PA) | 0.61 in | 15.49 mm | All | 120 °C | -40 C | Solder |
