P2000D Series
Manufacturer: INFINEON
Beta
⌘K

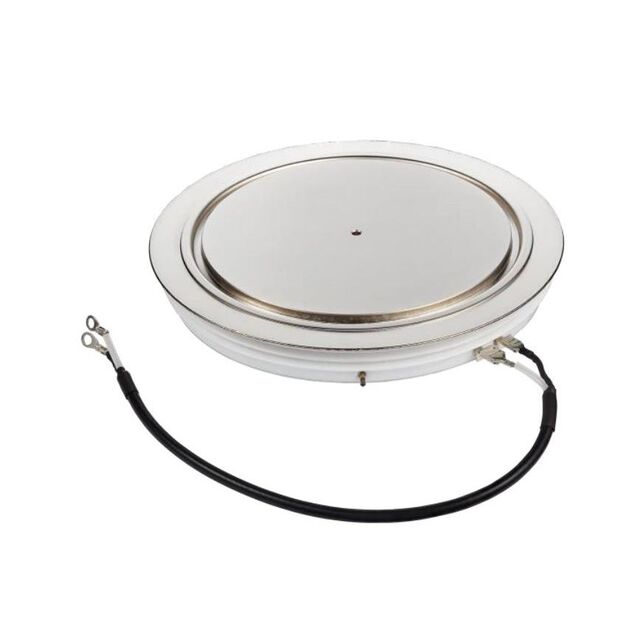

PRESS PACK IGBT BG-P16826K-1
| Part | Voltage - Collector Emitter Breakdown (Max) [Max] | Current - Collector Cutoff (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Configuration | Current - Collector (Ic) (Max) [Max] | Vce(on) (Max) @ Vge, Ic | IGBT Type | Supplier Device Package | Mounting Type | NTC Thermistor | Input | Input Capacitance (Cies) @ Vce | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 4500 V | 200 µA | -40 °C | 150 °C | Single | 2000 A | 2.5 V | Trench | BG-P16826K-1 | Chassis Mount | Standard | 420 nF | DO-200AE | |
 INFINEON | 4500 V | 200 µA | -40 °C | 150 °C | Single | 2000 A | 2.5 V | Trench | BG-P16826K-1 | Chassis Mount | Standard | 420 nF | TO-200AF |
