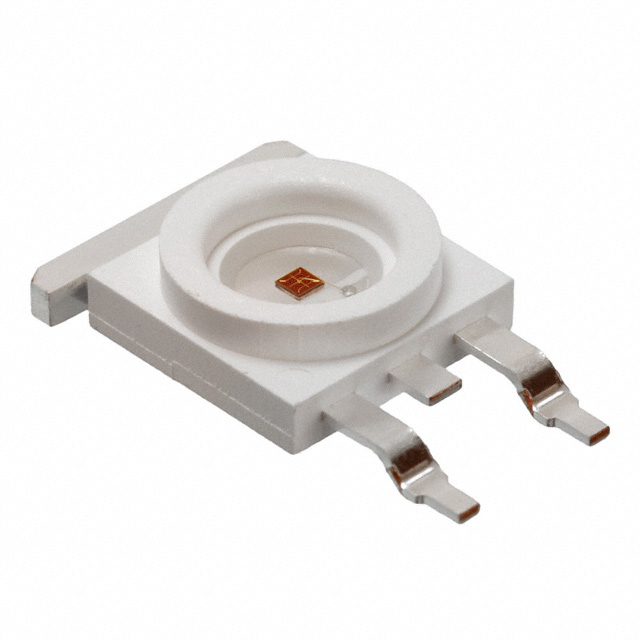

ASMT-MR00 Series
Manufacturer: Broadcom Limited
Beta
⌘K
LED MOONSTONE RED 628NM
| Part | Thermal Resistance of Package | Package / Case | Current - Max [Max] | Voltage - Forward (Vf) (Typ) | Mounting Type | Wavelength [Min] | Wavelength [Max] | Wavelength | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Color | Current - Test | Temperature - Test | Lumens/Watt @ Current - Test | Viewing Angle | Height - Seated (Max) [Max] | Height - Seated (Max) | Luminous Flux @ Current/Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | 12 °C/W | DPAK (2 Leads + Tab) SC-63 TO-252-3 | 350 mA | 2.4 V | Surface Mount | 620 nm | 635 nm | 628 nm | 8.5 mm | 0.335 " | 0.335 in | 8.5 mm | Red | 350 mA | 25 °C | 40 lm/W | 120 ° | 0.134 in | 3.4 mm | 34 lm |
 Broadcom Limited | 12 °C/W | DPAK (2 Leads + Tab) SC-63 TO-252-3 | 350 mA | 2.4 V | Surface Mount | 620 nm | 635 nm | 628 nm | 8.5 mm | 0.335 " | 0.335 in | 8.5 mm | Red | 350 mA | 25 °C | 54 lm/W | 120 ° | 0.134 in | 3.4 mm | 45 lm |
