090131 Series

Manufacturer: Molex

Catalog

CONN HEADER VERT 2POS

Part	Contact Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Shrouding	Insulation Color	Overall Contact Length	Overall Contact Length	Contact Material	Termination	Fastening Type	Number of Positions	Connector Type	Number of Positions Loaded	Number of Rows	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Applications	Contact Length - Mating	Contact Length - Mating	Style	Mounting Type	Material Flammability Rating	Insulation Height [z]	Insulation Height [z]	Contact Shape	Contact Finish - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating

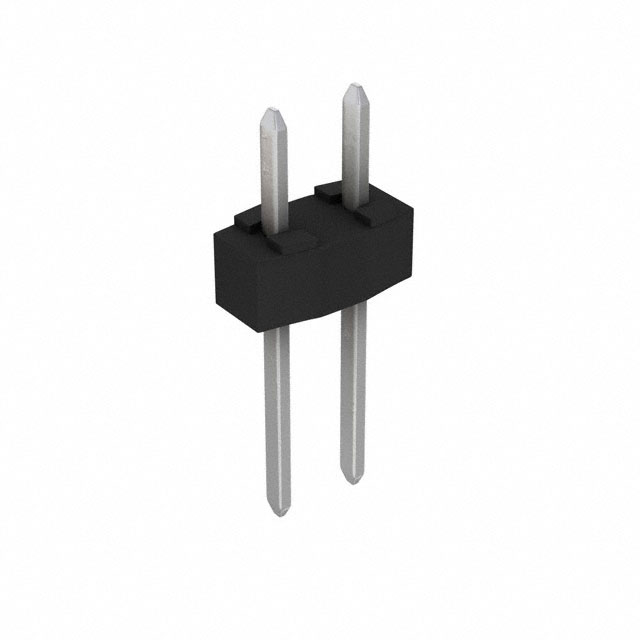

Molex 0901310121	Male Pin	3 µm	118.1 µin	Unshrouded	Black	0.478 in	12.15 mm	Brass	Solder	Push-Pull	2	Breakaway Header	All	2	0.114 in	2.9 mm	Tin	2.54 mm	0.1 in	118.1 µin	3 µm	Polyester Glass Filled	Automotive General Purpose	0.266 in	6.75 mm	Board to Cable/Wire	Through Hole	UL94 V-0	0.098 in	2.5 mm	Square
Molex 0901310930	Male Pin	3 µm	118.1 µin	Unshrouded	Black	0.478 in	12.15 mm	Brass	Solder	Push-Pull	20	Breakaway Header	All	2	0.114 in	2.9 mm	Tin	2.54 mm	0.1 in	0.76 Ám		Polyester Glass Filled	Automotive General Purpose	0.266 in	6.75 mm	Board to Cable/Wire	Through Hole	UL94 V-0	0.098 in	2.5 mm	Square	Gold	30 Áin	0.1 in	2.54 mm
Molex 0901310926	Male Pin	3 µm	118.1 µin	Unshrouded	Black	0.478 in	12.15 mm	Brass	Solder	Push-Pull	12	Breakaway Header	All	2	0.114 in	2.9 mm	Tin	2.54 mm	0.1 in	0.76 Ám		Polyester Glass Filled	Automotive General Purpose	0.266 in	6.75 mm	Board to Cable/Wire	Through Hole	UL94 V-0	0.098 in	2.5 mm	Square	Gold	30 Áin	0.1 in	2.54 mm
Molex 0901310142	Male Pin	3 µm	118.1 µin	Unshrouded	Black	0.478 in	12.15 mm	Brass	Solder	Push-Pull	44	Breakaway Header	All	2	0.114 in	2.9 mm	Tin	2.54 mm	0.1 in	118.1 µin	3 µm	Polyester Glass Filled	Automotive General Purpose	0.266 in	6.75 mm	Board to Cable/Wire	Through Hole	UL94 V-0	0.098 in	2.5 mm	Square			0.1 in	2.54 mm

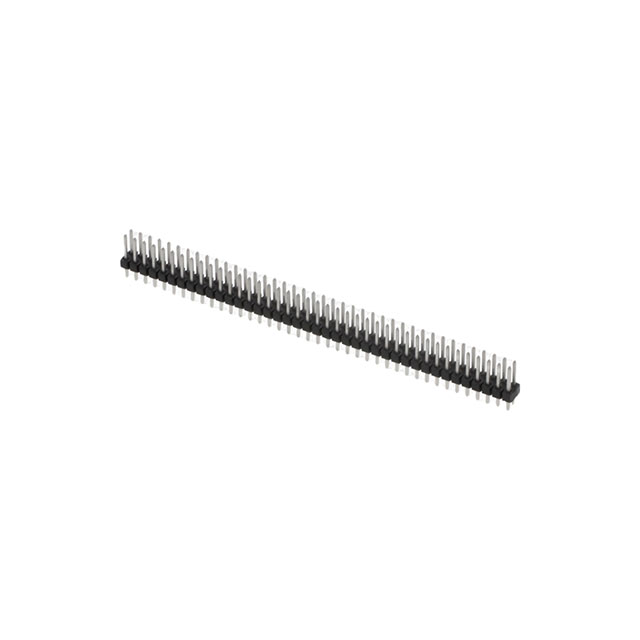

Molex 0901310160	Male Pin	3 µm	118.1 µin	Unshrouded	Black	0.478 in	12.15 mm	Brass	Solder	Push-Pull	80	Breakaway Header	All	2	0.114 in	2.9 mm	Tin	2.54 mm	0.1 in	118.1 µin	3 µm	Polyester Glass Filled	Automotive General Purpose	0.266 in	6.75 mm	Board to Cable/Wire	Through Hole	UL94 V-0	0.098 in	2.5 mm	Square			0.1 in	2.54 mm
Molex 0901310157	Male Pin	3 µm	118.1 µin	Unshrouded	Black	0.478 in	12.15 mm	Brass	Solder	Push-Pull	74	Breakaway Header	All	2	0.114 in	2.9 mm	Tin	2.54 mm	0.1 in	118.1 µin	3 µm	Polyester Glass Filled	Automotive General Purpose	0.266 in	6.75 mm	Board to Cable/Wire	Through Hole	UL94 V-0	0.098 in	2.5 mm	Square			0.1 in	2.54 mm
Molex 0901310796	Male Pin	3 µm	118.1 µin	Unshrouded	Black	0.478 in	12.15 mm	Brass	Solder	Push-Pull	72	Breakaway Header	All	2	0.114 in	2.9 mm	Tin	2.54 mm	0.1 in	0.38 µm		Polyester Glass Filled	Automotive General Purpose	0.266 in	6.75 mm	Board to Cable/Wire	Through Hole	UL94 V-0	0.098 in	2.5 mm	Square	Gold	15 µin	0.1 in	2.54 mm
Molex 0901310149	Male Pin	3 µm	118.1 µin	Unshrouded	Black	0.478 in	12.15 mm	Brass	Solder	Push-Pull	58	Breakaway Header	All	2	0.114 in	2.9 mm	Tin	2.54 mm	0.1 in	118.1 µin	3 µm	Polyester Glass Filled	Automotive General Purpose	0.266 in	6.75 mm	Board to Cable/Wire	Through Hole	UL94 V-0	0.098 in	2.5 mm	Square			0.1 in	2.54 mm

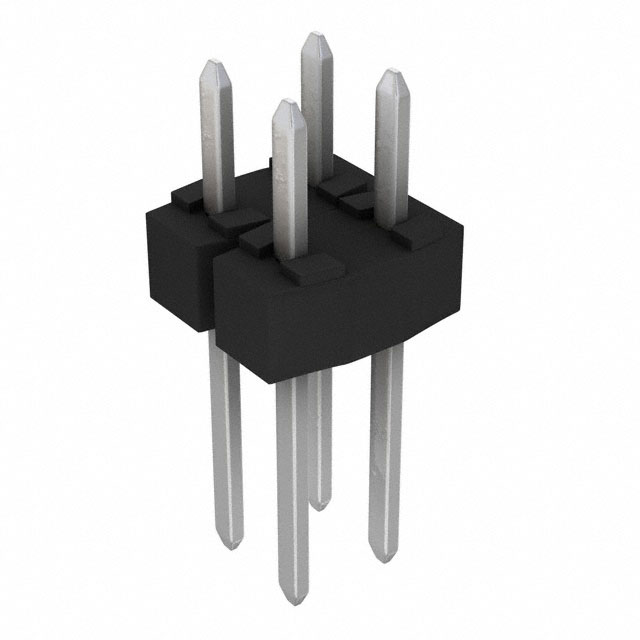

Molex 0901310122	Male Pin	3 µm	118.1 µin	Unshrouded	Black	0.478 in	12.15 mm	Brass	Solder	Push-Pull	4	Breakaway Header	All	2	0.114 in	2.9 mm	Tin	2.54 mm	0.1 in	118.1 µin	3 µm	Polyester Glass Filled	Automotive General Purpose	0.266 in	6.75 mm	Board to Cable/Wire	Through Hole	UL94 V-0	0.098 in	2.5 mm	Square			0.1 in	2.54 mm
Molex 0901310763	Male Pin	3 µm	118.1 µin	Unshrouded	Black	0.478 in	12.15 mm	Brass	Solder	Push-Pull	6	Breakaway Header	All	2	0.114 in	2.9 mm	Tin	2.54 mm	0.1 in	0.38 µm		Polyester Glass Filled	Automotive General Purpose	0.266 in	6.75 mm	Board to Cable/Wire	Through Hole	UL94 V-0	0.098 in	2.5 mm	Square	Gold	15 µin	0.1 in	2.54 mm
