C14610N024 Series

Manufacturer: Amphenol Tuchel Industrial

Catalog

CONN BASE SIDE ENTRY SZE24 M25

Part	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Connector Type	Lock Location	Thread Size	Style	Size	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Features	Housing Material
Amphenol Tuchel Industrial C14610N0246001	2.52 in	64 mm	143.5 mm	5.65 "	2.244 "	57 mm	Base - Box Mount	Locking Clip (2) on Base Bottom	M25	Side Entry	E24	-40 C	100 °C	IP65 - Dust Tight Water Resistant	Feed Through	Aluminum Alloy Die Cast

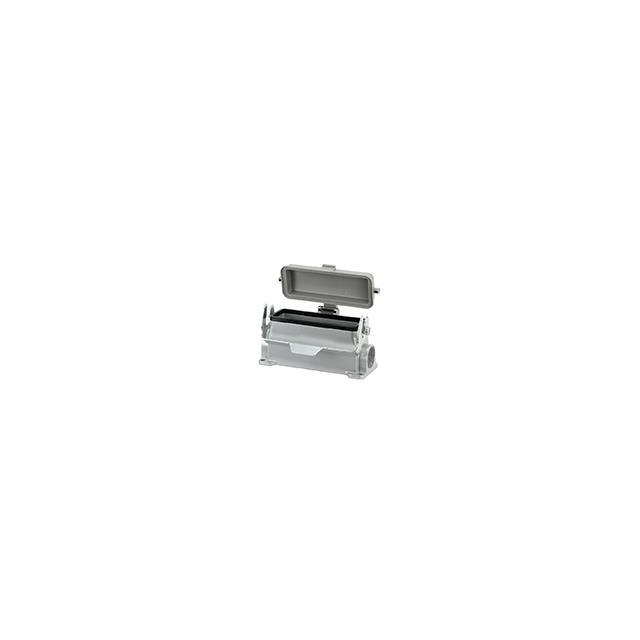

Amphenol Tuchel Industrial C14610N0248062		3.15 in 80 mm	5.65 in 143.5 mm			2.244 in 57 mm	Base - Box Mount	Locking Clip (1) on Base Bottom	M32	Side Entry	E24	-40 C	100 °C	IP65 - Dust Tight Water Resistant	Cover	Aluminum Alloy Die Cast
Amphenol Tuchel Industrial C14610N0246061	2.52 in	64 mm	143.5 mm	5.65 "	2.244 "	57 mm	Base - Box Mount	Locking Clip (1) on Base Bottom	M25	Side Entry	E24	-40 C	100 °C	IP65 - Dust Tight Water Resistant		Aluminum Alloy Die Cast
Amphenol Tuchel Industrial C14610N0248042		3.15 in 80 mm	5.65 in 143.5 mm			2.244 in 57 mm	Base - Box Mount	Locking Clip (2) on Hood	M32	Side Entry	E24	-40 C	100 °C	IP65 - Dust Tight Water Resistant	Cover	Aluminum Alloy Die Cast
Amphenol Tuchel Industrial C14610N0246002		3.15 in 80 mm	5.65 in 143.5 mm			2.244 in 57 mm	Base - Box Mount	Locking Clip (2) on Hood	M32	Side Entry	E24	-40 C	100 °C	IP65 - Dust Tight Water Resistant	Feed Through	Aluminum Alloy Die Cast
Amphenol Tuchel Industrial C14610N0248061	2.52 in	64 mm	143.5 mm	5.65 "	2.244 "	57 mm	Base - Box Mount	Locking Clip (1) on Base Bottom	M25	Side Entry	E24	-40 C	100 °C	IP65 - Dust Tight Water Resistant	Cover	Aluminum Alloy Die Cast
Amphenol Tuchel Industrial C14610N0248021	2.52 in	64 mm	143.5 mm	5.65 "	2.244 "	57 mm	Base - Box Mount	Locking Clip (1) on Base Bottom	M25	Side Entry	E24	-40 C	100 °C	IP65 - Dust Tight Water Resistant		Aluminum Alloy Die Cast
Amphenol Tuchel Industrial C14610N0245001	2.52 in	64 mm	143.5 mm	5.65 "	2.244 "	57 mm	Base - Box Mount	Locking Clip (2) on Base Bottom	M25	Side Entry	E24	-40 C	100 °C	IP65 - Dust Tight Water Resistant		Aluminum Alloy Die Cast
Amphenol Tuchel Industrial C14610N0246041	2.52 in	64 mm	143.5 mm	5.65 "	2.244 "	57 mm	Base - Box Mount	Locking Clip (2) on Hood	M25	Side Entry	E24	-40 C	100 °C	IP65 - Dust Tight Water Resistant		Aluminum Alloy Die Cast
Amphenol Tuchel Industrial C14610N0246062		3.15 in 80 mm	5.65 in 143.5 mm			2.244 in 57 mm	Base - Box Mount	Locking Clip (1) on Base Bottom	M32	Side Entry	E24	-40 C	100 °C	IP65 - Dust Tight Water Resistant		Aluminum Alloy Die Cast
