503308 Series

Manufacturer: Molex

Catalog

SLIMSTACK BOARD-TO-BOARD PLUG, 0.40MM PITCH, HRF (HIGH RETENTION FORCE) SERIES, 0.70MM MATED HEIGHT, 2.60MM MATED WIDTH, 60 CIRCUITS

Part	Features	Number of Rows [custom]	Contact Finish	Mounting Type	Pitch	Pitch	Number of Positions	Mated Stacking Heights	Connector Type	Height Above Board [z]	Height Above Board [z]	Contact Finish Thickness	Contact Finish Thickness
Molex 5033086012	Pick and Place Solder Retention	2	Gold	Surface Mount	0.4 mm	0.016 in	60	0.7 mm	Plug Outer Shroud Contacts	0.59 mm	0.023 in

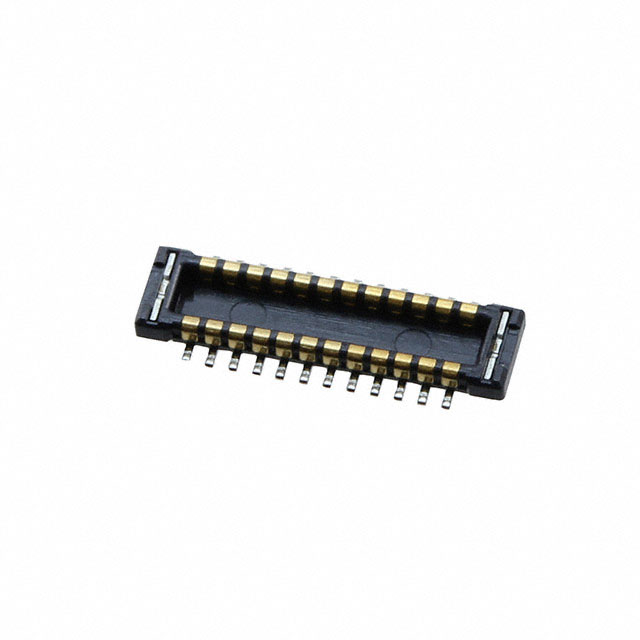

Molex 5033082410	Solder Retention	2	Gold	Surface Mount	0.4 mm	0.016 in	24	0.7 mm	Plug Outer Shroud Contacts	0.57 mm	0.022 in
Molex 5033082451	Pick and Place Solder Retention	2	Gold	Surface Mount	0.4 mm	0.016 in	24	0.7 mm	Plug Outer Shroud Contacts	0.59 mm	0.023 in	0.1 Ám	4 Áin

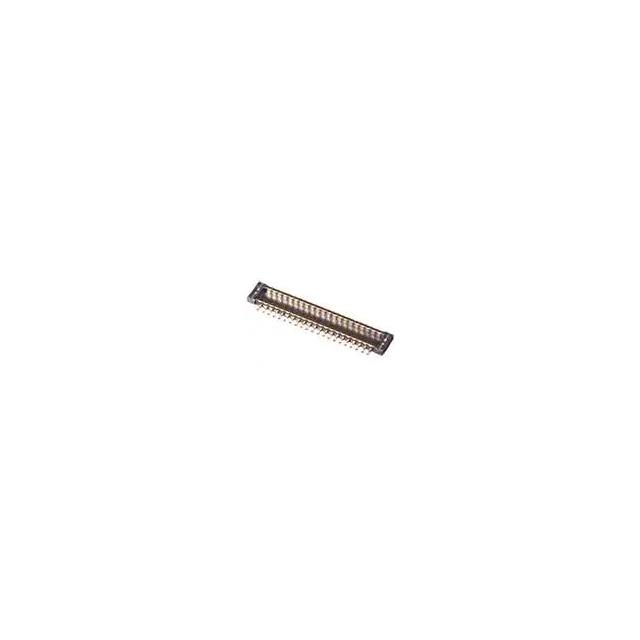

Molex 5033083053	Pick and Place Solder Retention	2	Gold	Surface Mount	0.4 mm	0.016 in	30	0.7 mm	Plug Outer Shroud Contacts	0.59 mm	0.023 in	0.1 Ám	4 Áin
Molex 5033085012	Pick and Place Solder Retention	2	Gold	Surface Mount	0.4 mm	0.016 in	50	0.7 mm	Plug Outer Shroud Contacts	0.59 mm	0.023 in
Molex 5033085052	Pick and Place Solder Retention	2	Gold	Surface Mount	0.4 mm	0.016 in	50	0.7 mm	Plug Outer Shroud Contacts	0.59 mm	0.023 in	0.1 Ám	4 Áin

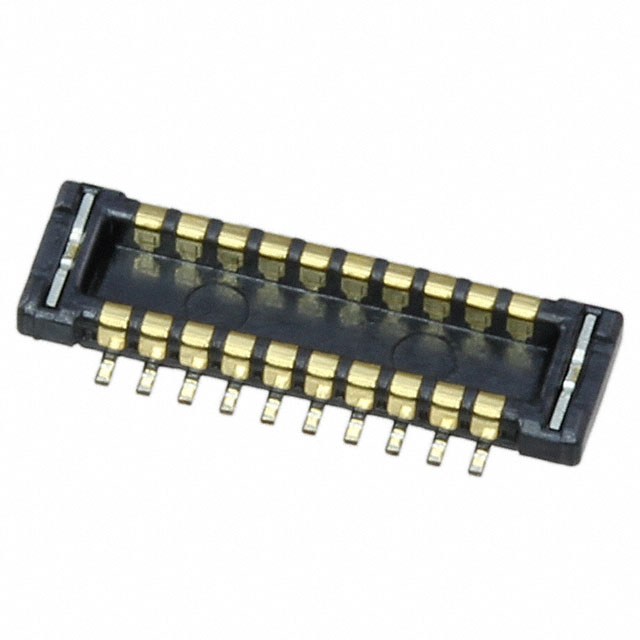

Molex 5033082010	Solder Retention	2	Gold	Surface Mount	0.4 mm	0.016 in	20	0.7 mm	Plug Outer Shroud Contacts	0.57 mm	0.022 in
Molex 5033085051	Pick and Place Solder Retention	2	Gold	Surface Mount	0.4 mm	0.016 in	50	0.7 mm	Plug Outer Shroud Contacts	0.59 mm	0.023 in	0.1 Ám	4 Áin

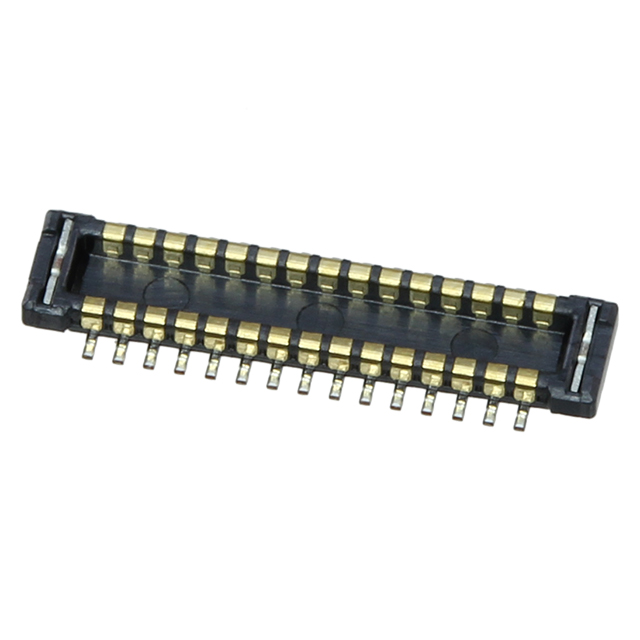

Molex 5033083010	Solder Retention	2	Gold	Surface Mount	0.4 mm	0.016 in	30	0.7 mm	Plug Outer Shroud Contacts	0.57 mm	0.022 in
Molex 5033083051	Pick and Place Solder Retention	2	Gold	Surface Mount	0.4 mm	0.016 in	30	0.7 mm	Plug Outer Shroud Contacts	0.59 mm	0.023 in	0.1 Ám	4 Áin
