SFV6R Series

Catalog

CONN FPC BOTTOM 6POS 0.5MM R/A

Part	Mating Cycles	Actuator Color	Current Rating (Amps)	Housing Color	Housing Material	Contact Material	Number of Positions	Flat Flex Type	Mounting Type	FFC, FCB Thickness [custom]	FFC, FCB Thickness [custom]	Pitch	Pitch	Actuator Material	Cable End Type	Voltage Rating	Connector/Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Height Above Board [z]	Height Above Board [z]	Locking Feature	Contact Finish	Material Flammability Rating	Features	FFC, FCB Thickness
Amphenol ICC (FCI) SFV6R-3STBE1HLF	20	Black	0.5 A	Black	Glass Filled Halogen Free Nylon Polyamide (PA)	Phosphor Bronze	6	FPC	Right Angle Surface Mount	0.3 mm	0.33 mm	0.02 "	0.5 mm	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Straight Tapered	50 V	Contacts Bottom	-55 C	105 ░C	Solder	0.071 in	1.8 mm	Slide Lock	Gold	UL94 V-0
Amphenol ICC (FCI) SFV6R-2STE1	20	Brown	0.5 A	Black	Glass Filled Nylon Polyamide (PA)	Phosphor Bronze	6	FFC FPC	Right Angle Surface Mount	0.3 mm	0.33 mm	0.02 "	0.5 mm	Polyphenylene Sulfide (PPS) Glass Filled	Straight Tapered	50 V	Contacts Top	-55 C	105 ░C	Solder	0.071 in	1.8 mm	Slide Lock	Tin Alloy	UL94 V-0	Solder Retention Zero Insertion Force (ZIF)

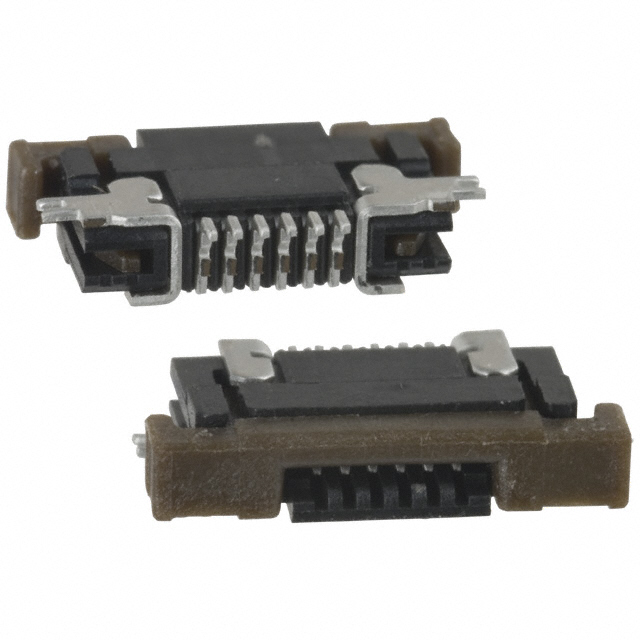

Amphenol ICC (FCI) SFV6R-1STE1LF		Brown	0.5 A	Black	Glass Filled Nylon Polyamide (PA)	Phosphor Bronze	6	FFC FPC	Right Angle Surface Mount	0.3 mm	0.33 mm	0.02 "	0.5 mm	Polyphenylene Sulfide (PPS) Glass Filled	Straight Tapered	50 V	Contacts Bottom	-55 C	105 ░C	Solder	0.071 in	1.8 mm	Slide Lock	Tin	UL94 V-0	Solder Retention Zero Insertion Force (ZIF)
Amphenol ICC (FCI) SFV6R-3STBE1LF			0.5 A		Glass Filled Nylon Polyamide (PA)		6	FPC	Right Angle Surface Mount			0.02 "	0.5 mm		Notched	50 V	Contacts Bottom	-55 C	105 ░C	Solder	0.071 in	1.8 mm	Slide Lock	Gold		Solder Retention Zero Insertion Force (ZIF)	0.33 mm

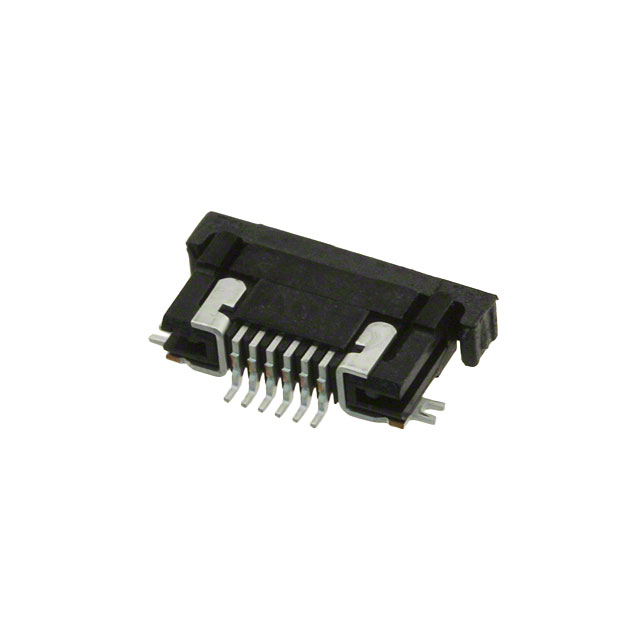

Amphenol ICC (FCI) SFV6R-1STE1HLF	20	Black	0.5 A	Black	Glass Filled Halogen Free Nylon Polyamide (PA)	Phosphor Bronze	6	FFC FPC	Right Angle Surface Mount			0.02 "	0.5 mm	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Tapered	50 V	Contacts Bottom	-55 C	105 ░C	Solder	0.071 in	1.8 mm	Slide Lock	Tin	UL94 V-0		0.33 mm

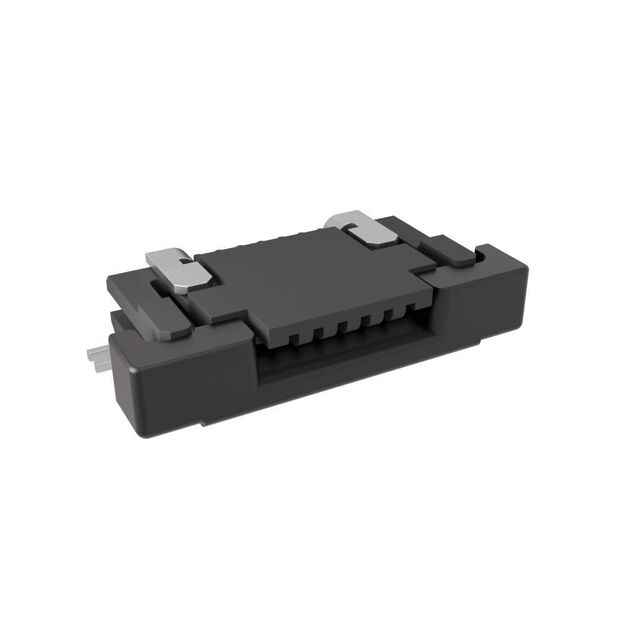

Amphenol ICC (FCI) SFV6R-2STBE1HLF	20	Black	0.5 A	Black	Glass Filled Halogen Free Nylon Polyamide (PA)	Phosphor Bronze	6	FFC FPC	Right Angle Surface Mount	0.3 mm	0.33 mm	0.02 "	0.5 mm	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Tapered	50 V	Contacts Top	-55 C	105 ░C	Solder	0.071 in	1.8 mm	Slide Lock	Gold	UL94 V-0	Solder Retention Zero Insertion Force (ZIF)
Amphenol ICC (FCI) SFV6R-1STAE1HLF	20	Black	0.5 A	Black	Glass Filled Halogen Free Nylon Polyamide (PA)	Phosphor Bronze	6	FFC FPC	Right Angle Surface Mount	0.3 mm	0.33 mm	0.02 "	0.5 mm	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Straight Tapered	50 V	Contacts Bottom	-55 C	105 ░C	Solder	0.071 in	1.8 mm	Slide Lock	Gold	UL94 V-0	Solder Retention Zero Insertion Force (ZIF)

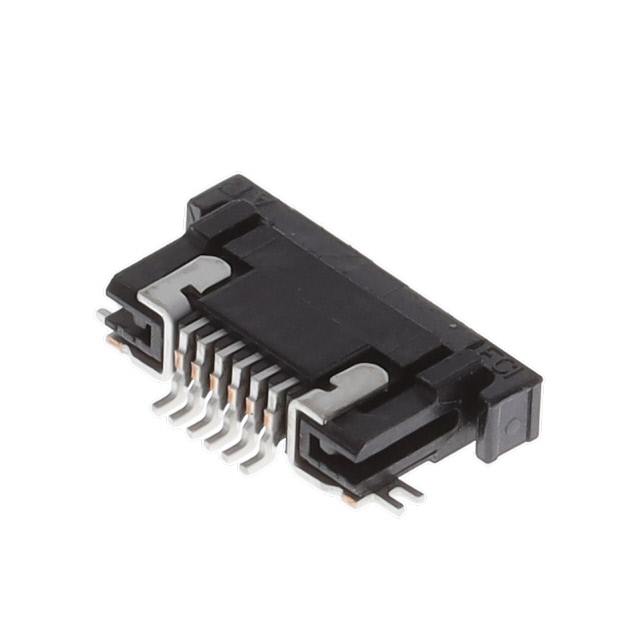

Amphenol ICC (FCI) SFV6R-1STE9HLF	20	Black	0.5 A	Black	Glass Filled Halogen Free Nylon Polyamide (PA)	Phosphor Bronze	6	FFC FPC	Right Angle Surface Mount	0.3 mm	0.33 mm	0.02 "	0.5 mm	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Straight Tapered	50 V	Contacts Bottom	-55 C	105 ░C	Solder	0.071 in	1.8 mm	Slide Lock	Tin	UL94 V-0	Solder Retention Zero Insertion Force (ZIF)
