ATS-01A Series

Manufacturer: Advanced Thermal Solutions Inc.

Catalog

Catalog

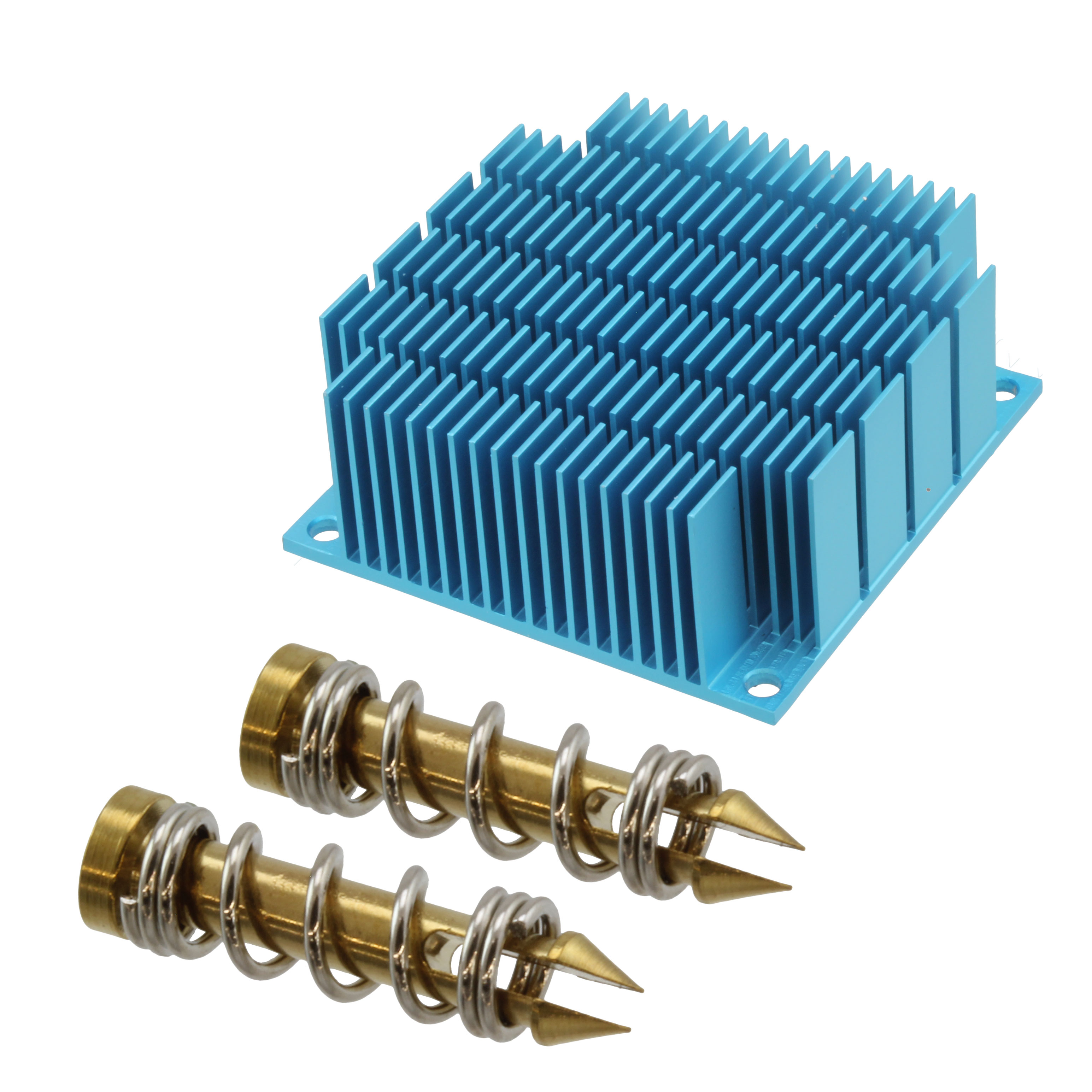

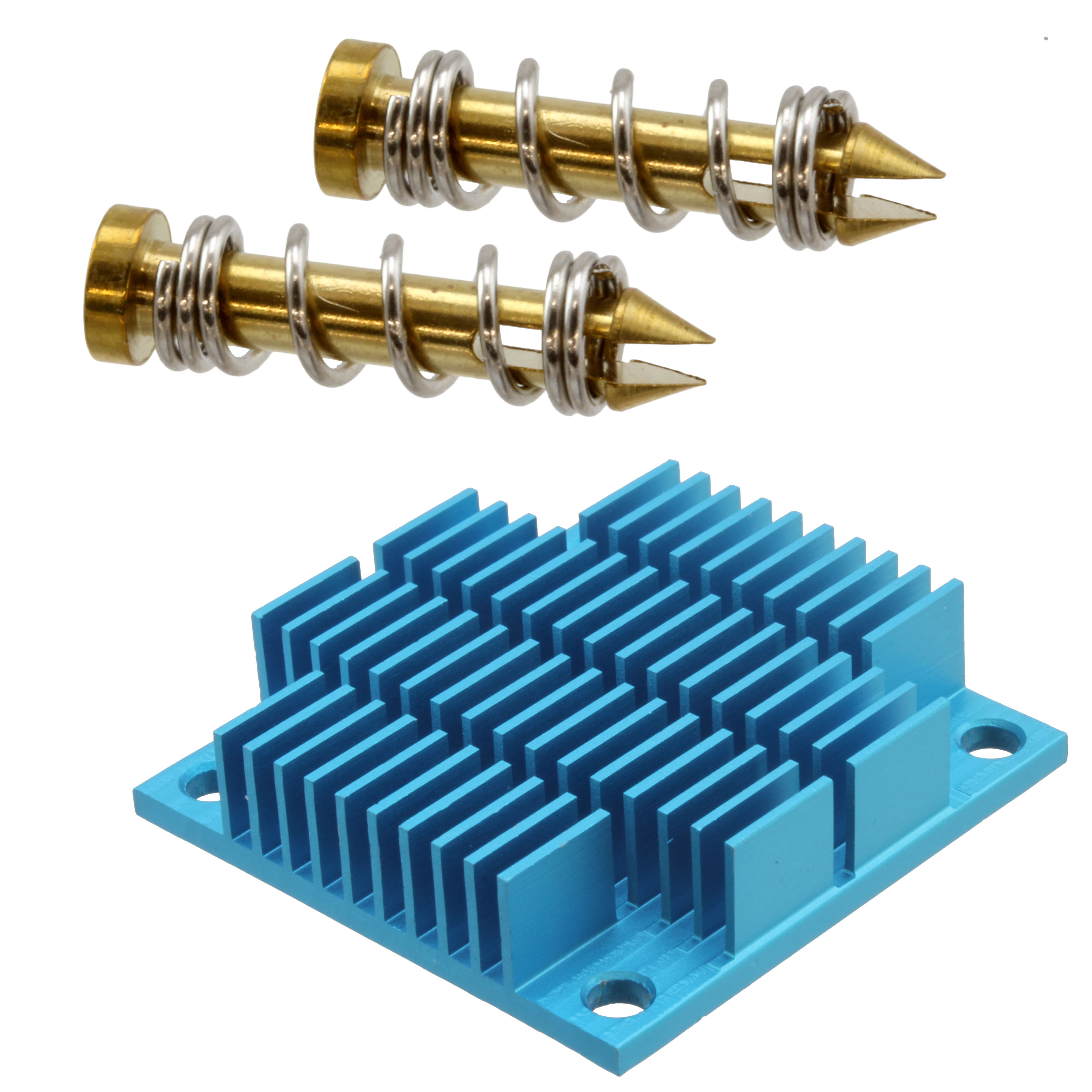

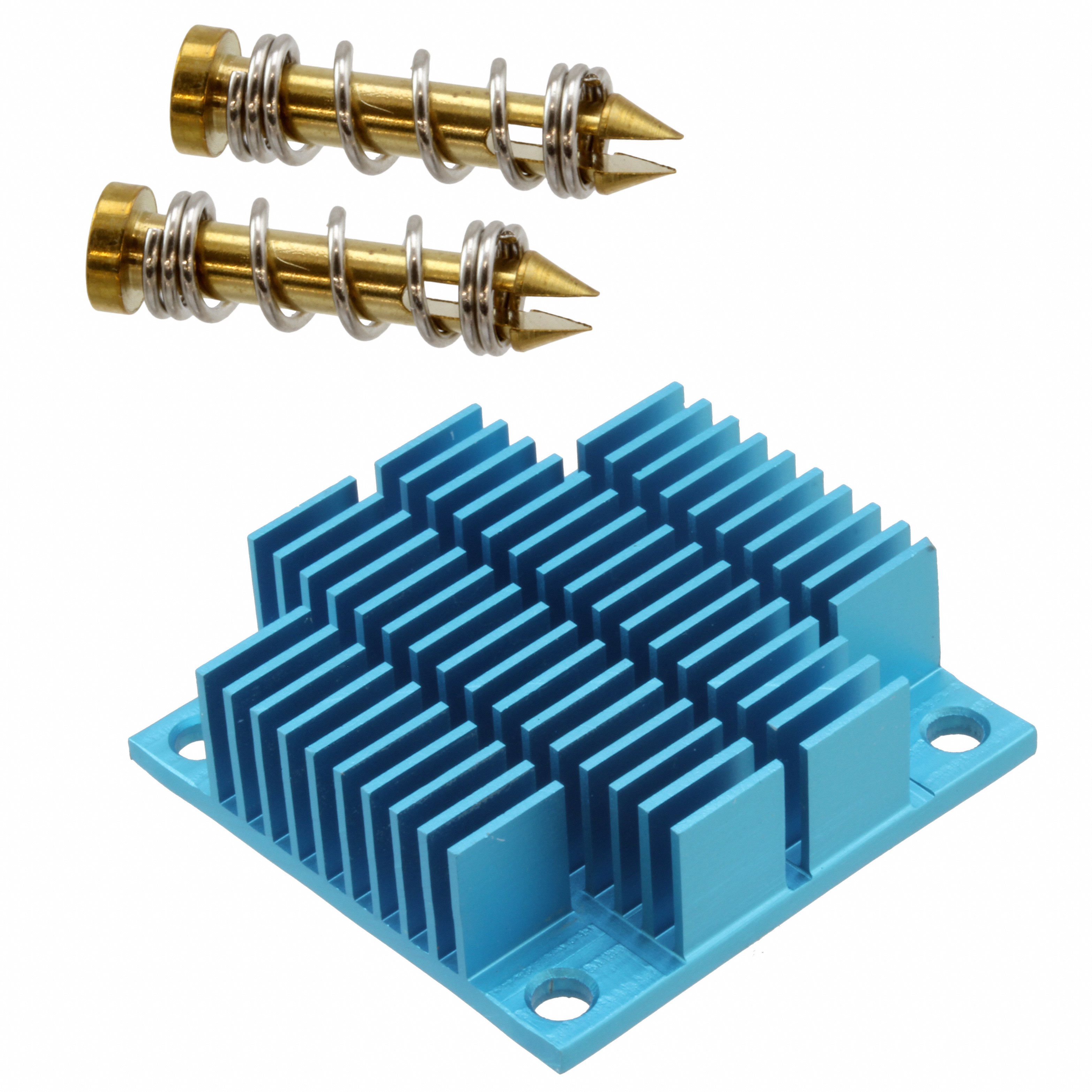

HEATSINK 40X40X30MM L-TAB

...

Part	Material	Width [y]	Width [y]	Attachment Method	Thermal Resistance @ Forced Air Flow	Fin Height [z]	Fin Height [z]	Shape	Package Cooled	Type	Material Finish	Fin Height [custom]	Fin Height [custom]	Width	Width	Fin Height	Fin Height	Length [x]	Length [x]	Width [x]	Width [x]	Length	Length	Shape [custom]	Shape [custom]	Length
Advanced Thermal Solutions Inc. ATS-01A-157-C1-R0	Aluminum	1.575 in	40 mm	Push Pin	3.32 °C/W	1.181 in	30 mm	Fins Square	ASIC BGA CPU LGA	Top Mount	Blue Anodized
Advanced Thermal Solutions Inc. ATS-01A-91-C3-R0	Aluminum	1.575 in	40 mm	Push Pin	22.07 °C/W			Fins Square	ASIC BGA CPU LGA	Top Mount	Blue Anodized	0.394 "	10 mm
Advanced Thermal Solutions Inc. ATS-01A-190-C1-R0	Aluminum			Push Pin	3.6 °C/W			Fins Square	ASIC BGA CPU LGA	Top Mount	Blue Anodized			1.772 in	45 mm	25 mm	0.984 in	1.772 in	45 mm
Advanced Thermal Solutions Inc. ATS-01A-65-C3-R0	Aluminum	1.575 in	40 mm	Push Pin	7.4 °C/W	1.181 in	30 mm	Fins Square	ASIC BGA CPU LGA	Top Mount	Blue Anodized
Advanced Thermal Solutions Inc. ATS-01A-15-C1-R0	Aluminum			Push Pin	7.42 °C/W			Fins Square	ASIC BGA CPU LGA	Top Mount	Blue Anodized					25 mm	0.984 in	1.969 in	50 mm	50 mm	1.969 in
Advanced Thermal Solutions Inc. ATS-01A-42-C3-R0	Aluminum	2.4 "	60.96 mm	Push Pin	7.35 °C/W	0.9 in	22.86 mm		ASIC BGA CPU LGA	Top Mount	Blue Anodized											57.9 mm	2.28 in	Rectangular	Fins
Advanced Thermal Solutions Inc. ATS-01A-185-C2-R0	Aluminum	1.575 in	40 mm	Push Pin	3.35 °C/W	1.181 in	30 mm	Fins Square	ASIC BGA CPU LGA	Top Mount	Blue Anodized
Advanced Thermal Solutions Inc. ATS-01A-19-C3-R0	Aluminum			Push Pin	9.84 °C/W	0.79 in	20 mm	Fins Square	ASIC BGA CPU LGA	Top Mount	Blue Anodized									54 mm	2.126 in		54 mm			2.126 in
Advanced Thermal Solutions Inc. ATS-01A-201-C3-R0	Aluminum			Push Pin	8.29 °C/W			Fins Square	ASIC BGA CPU LGA	Top Mount	Blue Anodized					12 mm	0.472 in	1.969 in	50 mm	50 mm	1.969 in
Advanced Thermal Solutions Inc. ATS-01A-195-C1-R0	Aluminum	1.575 in	40 mm	Push Pin	10.88 °C/W			Fins Square	ASIC BGA CPU LGA	Top Mount	Blue Anodized					12 mm	0.472 in
