PUN-H-6 Series
Manufacturer: Festo Corporation
Beta
⌘K

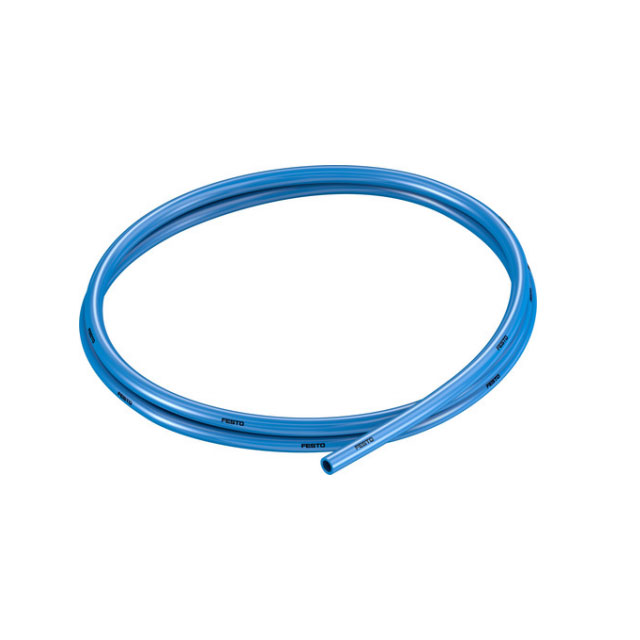

PNEUMATIC TUBING, 50M, 10BAR, PU, BLUE ROHS COMPLIANT: YES
| Part | Operating Pressure [Max] | Operating Pressure [Min] | Operating Pressure | Operating Pressure | Outer Diameter [diameter] | Outer Diameter [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Color | Type | Length | Length | Inner Diameter [diameter] | Inner Diameter [diameter] | Fluid Type | Minimum Bend Radius [radius] | Minimum Bend Radius [radius] | Material | Bend Radius (Flow) [radius] | Bend Radius (Flow) [radius] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Festo Corporation | 145 PSI | -14 PSI | 10 bar | -1 bar | 6 mm | 0.236 in | -35 °C | 60 °C | Blue | Tubing | 50 m | 164 ft | 0.157 in | 4 mm | Compressed Air Water | 0.394 " | 10 mm | Thermoplastic Polyurethane (TPE-U) | 26 mm | 1.024 in |
