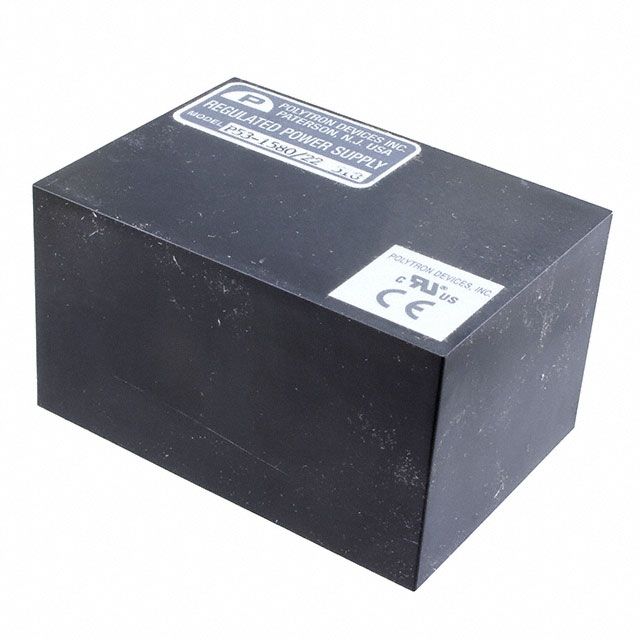

P53-1580 Series
Manufacturer: Daburn Electronics
Beta
⌘K
AC/DC CONVERTER 5V +/-15V 9.5W
| Part | Load Regulation | Line Regulation | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Voltage - Input [Min] | Voltage - Input [Max] | Voltage - Output 3 | Current - Output (Max) | Current - Output (Max) | Current - Output (Max) | Voltage - Output 2 | Type | Voltage - Output 1 | Applications | Approval Agency | Power (Watts) | Number of Outputs | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Daburn Electronics | 0.1 % | 0.02 % | 71 °C | -25 °C | 7-DIP Module | 51 mm | 63.5 mm | 2.5 " | 3.5 " | 88.9 mm | 2.01 " | 105 VAC | 125 VAC | -15 V | 150 mA | 1 A | 150 mA | 15 V | Enclosed | 5 V | ITE (Commercial) | CE CSA cURus UL | 9.5 W | 3 | Through Hole |
