053426 Series

Manufacturer: Molex

Catalog

MINILOCK 2.5 RA GW NAT 5CKT

Part	Contact Length - Mating	Contact Length - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Contact Shape	Termination	Number of Rows	Connector Type	Material Flammability Rating	Shrouding	Insulation Material	Insulation Color	Style	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Number of Positions Loaded	Voltage Rating	Contact Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Contact Material	Number of Positions	Applications	Current Rating (Amps)	Contact Length - Post	Insulation Height	Insulation Height
Molex 0534269050	4 mm	0.157 in	0.134 in	3.4 mm	Tin	2.5 mm	0.098 in	Circular	Kinked Pin Solder	1	Header	UL94 V-0	Shrouded - 4 Wall	Glass Filled Nylon Polyamide (PA)	Natural	Board to Cable/Wire	0.264 in	6.7 mm	1 µm	39.4 µin	Glow Wire Compliant	Through Hole Right Angle	-40 °C	105 ░C	3 A	All	250 VAC	Male Pin	1 çm	39.4 çin	Locking Ramp	Phosphor Bronze
Molex 0534269130	4 mm	0.157 in	0.134 in	3.4 mm	Tin	2.5 mm	0.098 in	Circular	Kinked Pin Solder	1	Header	UL94 V-0	Shrouded - 4 Wall	Glass Filled Nylon Polyamide (PA)	Natural	Board to Cable/Wire	0.264 in	6.7 mm	1 µm	39.4 µin	Glow Wire Compliant	Through Hole Right Angle	-40 °C	105 ░C	3 A	All	250 VAC	Male Pin	1 çm	39.4 çin	Locking Ramp	Phosphor Bronze	13
Molex 0534269080	4 mm	0.157 in	0.134 in	3.4 mm	Tin	2.5 mm	0.098 in	Circular	Kinked Pin Solder	1	Header	UL94 V-0	Shrouded - 4 Wall	Glass Filled Nylon Polyamide (PA)	Natural	Board to Cable/Wire	0.264 in	6.7 mm	1 µm	39.4 µin	Glow Wire Compliant	Through Hole Right Angle	-40 °C	105 ░C	3 A	All	250 VAC	Male Pin	1 çm	39.4 çin	Locking Ramp	Phosphor Bronze	8
Molex 0534269140	4 mm	0.157 in	0.134 in	3.4 mm	Tin	2.5 mm	0.098 in	Circular	Kinked Pin Solder	1	Header	UL94 V-0	Shrouded - 4 Wall	Glass Filled Nylon Polyamide (PA)	Natural	Board to Cable/Wire	0.264 in	6.7 mm	1 µm	39.4 µin	Glow Wire Compliant	Through Hole Right Angle	-40 °C	105 ░C	3 A	All	250 VAC	Male Pin	1 çm	39.4 çin	Locking Ramp	Phosphor Bronze	14
Molex 0534260710	4 mm	0.157 in	0.134 in	3.4 mm	Tin	2.5 mm	0.098 in	Circular	Kinked Pin Solder	1	Header	UL94 V-0	Shrouded - 4 Wall	Polybutylene Terephthalate (PBTP) Glass Filled	White	Board to Cable/Wire	0.264 in	6.7 mm				Through Hole Right Angle	-40 °C	105 ░C		All	250 VDC	Male Pin			Locking Ramp	Phosphor Bronze	7	General Purpose Industrial	Varies by Wire Gauge
Molex 0534260490	4 mm	0.157 in	0.11 in		Tin	2.5 mm	0.098 in	Circular	Solder	1	Header	UL94 V-0	Shrouded - 4 Wall	Polybutylene Terephthalate (PBTP) Glass Filled	White	Board to Cable/Wire					Board Guide	Through Hole Right Angle	-40 °C	105 ░C		All	250 VDC	Male Pin			Locking Ramp	Phosphor Bronze	4	General Purpose Industrial	Varies by Wire Gauge	2.79 mm	8.2 mm	0.323 in

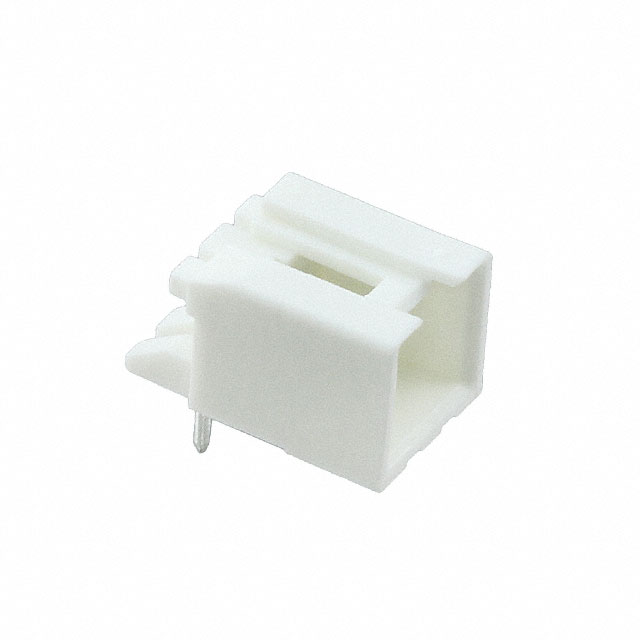

Molex 0534260210	4 mm	0.157 in	0.134 in	3.4 mm	Tin	2.5 mm	0.098 in	Circular	Kinked Pin Solder	1	Header	UL94 V-0	Shrouded - 4 Wall	Polybutylene Terephthalate (PBTP) Glass Filled	White	Board to Cable/Wire	0.264 in	6.7 mm				Through Hole Right Angle	-40 °C	105 ░C		All	250 VDC	Male Pin			Locking Ramp	Phosphor Bronze	2	General Purpose Industrial	Varies by Wire Gauge
Molex 0534269090	4 mm	0.157 in	0.134 in	3.4 mm	Tin	2.5 mm	0.098 in	Circular	Kinked Pin Solder	1	Header	UL94 V-0	Shrouded - 4 Wall	Glass Filled Nylon Polyamide (PA)	Natural	Board to Cable/Wire	0.264 in	6.7 mm	1 µm	39.4 µin	Glow Wire Compliant	Through Hole Right Angle	-40 °C	105 ░C	3 A	All	250 VAC	Male Pin	1 çm	39.4 çin	Locking Ramp	Phosphor Bronze	9
Molex 0534260041
Molex 0534260040
