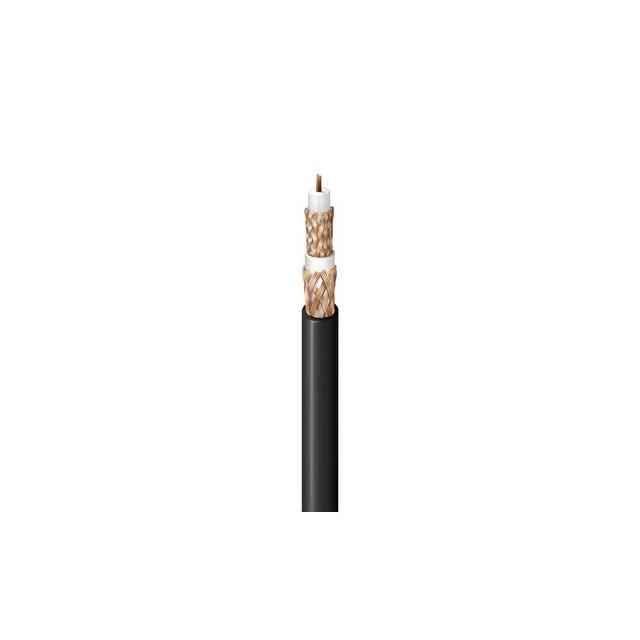

1859A Series
Manufacturer: Belden Inc.
Beta
⌘K
#15 FFEP BRD SLF BRD PVDF
| Part | Dielectric Material | Shield Material | Conductor Material | Shield Coverage | VoP, Velocity of Propagation | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Jacket Color | Length [x] | Length [x] | Cable Group | Jacket (Insulation) Material | Wire Gauge | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Fluorinated Ethylene-Propylene (FEP) | Copper Bare | Copper Bare | 90 % | 80 | 0.285 in | 7.24 mm | -20 ░C | 125 °C | 0.406 " | 10.31 mm | Braid | Black | 152.4 m | 500 ft | RG-11 | Polyvinylidene Fluoride (PVDF) | 15 AWG | Triaxial - Plenum | 19 | 27 AWG | Video |
Belden Inc. | Fluorinated Ethylene Propylene (FEP) | Copper Bare | Copper Bare | 90 % | 80 | 0.285 in | 7.24 mm | -20 ░C | 125 °C | 0.406 " | 10.31 mm | Braid | Black | 304.8 m | 1000 ft | RG-11 | Polyvinylidene Fluoride (PVDF) | 15 AWG | Triaxial - Plenum | 19 | 27 AWG | Video |
