72R185X Series

PTC 72V POLYFUSE AMMO RADIAL LEADS 1.85A

Catalog

PTC 72V POLYFUSE AMMO RADIAL LEADS 1.85A

Part	Operating Temperature [Max]	Operating Temperature [Min]	Lead Spacing	Lead Spacing	Size / Dimension [custom]	Size / Dimension [diameter]	Size / Dimension [custom]	Size / Dimension [diameter]	Type	Package / Case	Current - Hold (Ih) (Max) [Max]	Approval Agency	Resistance - Initial (Ri) (Min) [Min]	Mounting Type	Current - Max [Max]	Current - Trip (It)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage - Max [Max]

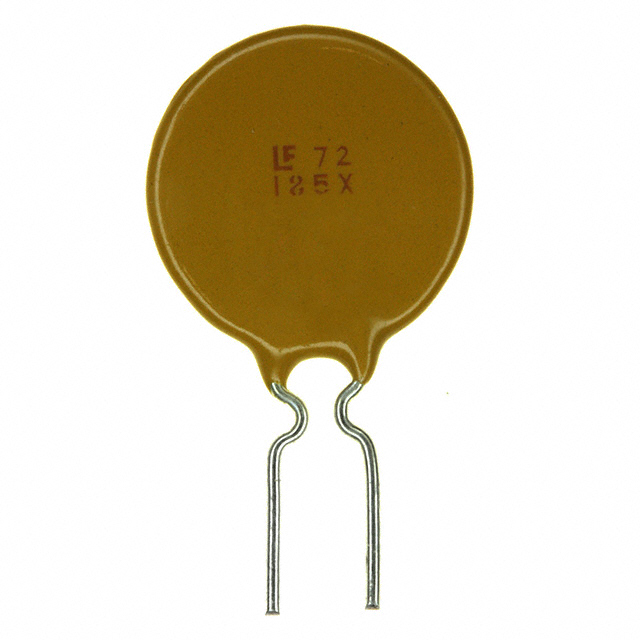

Littelfuse/Commercial Vehicle Products 72R185XF	85 °C	-40 °C	5.1 mm	0.201 in	0.122 in	16.76 mm	3.1 mm	0.66 in	Polymeric	Disc Radial	1.85 A	cURus TUV	80 mOhms	Through Hole	40 A	3.7 A	23 mm	0.906 in	72 V

PTC 72V POLYFUSE AMMO RADIAL LEADS 1.85A

• Lead-free and RoHS compliant

• Maximum voltage rating of 72 V dc and maximum short circuit rating of 40 A

• Resettable feature

• Ideal for a broad range of general electronics using a low voltage power supply

The 72R Series is designed to provide overcurrent protection to 72Vdc maximum voltage with a maximum 40A short circuit rating.
