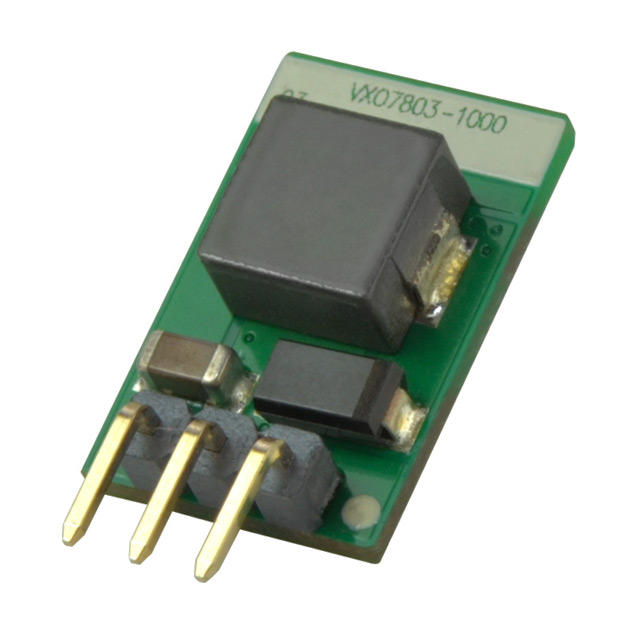

VXO7805 Series
Manufacturer: CUI Inc.
Beta
⌘K
DC DC CONVERTER 5V OR -5V 2.5W
| Part | Number of Outputs | Approval Agency | Type | Standard Number | Efficiency | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Voltage - Output 1 | Features | Applications | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Voltage - Input (Min) | Current - Output (Max) | Voltage - Input (Max) | Voltage - Input (Max) | Power (Watts) | Current - Output (Max) | Voltage - Output 1 | Voltage - Input (Min) [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | 1 | CB Scheme EN IEC UL | Linear Regulator Replacement | 55024 55032 Class A 60950-1 | 90 % | 3-SIP Module | -40 °C | 85 °C | Through Hole | 5 V | SCP | ITE (Commercial) | 0.39 " | 7.2 mm | 0.43 in | 10 mm | 0.28 in | 11 mm | 6.5 V 7 V | 300mA 500mA | 31 V | 36 V | ||||
 CUI Inc. | 1 | CB Scheme EN IEC UL | Linear Regulator Replacement | 55024 55032 Class A 60950-1 | 93 % | 3-SIP Module | -40 °C | 85 °C | Through Hole | SCP | ITE (Commercial) | 0.45 " | 7.5 mm | 0.69 in | 11.5 mm | 0.3 " | 17.5 mm | 27 V 36 V | 5 W | 1 A 500 mA | -5V 5V | 8 V |
