NCL2801 Series

Critical Conduction Mode (CrM) Power Factor Correction Controller, THD Enhancer

Catalog

Critical Conduction Mode (CrM) Power Factor Correction Controller, THD Enhancer

Part	Package / Case	Package / Case [y]	Package / Case [x]	Supplier Device Package	Mode	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Current - Startup	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output / Channel	Contents	Utilized IC / Part	Voltage - Input [Max]	Voltage - Input [Min]	Outputs and Type	Features
ON Semiconductor NCL2801CFADR2G	8-SOIC	3.9 mm	0.154 in	8-SOIC	Critical Conduction (CRM) Discontinuous Conduction (DCM)	Surface Mount	10.5 V	27 V	10 µA	-40 °C	125 ¯C

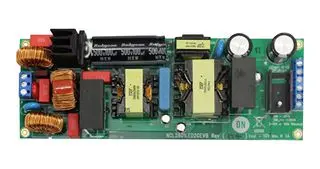

ON Semiconductor NCL2801LED2GEVB												1.5 A	Board(s)	NCL2801 NCP13992	305 VAC	90 VAC	1 Non-Isolated Output	Dimmable
ON Semiconductor NCL2801CDBDR2G	8-SOIC	3.9 mm	0.154 in	8-SOIC	Critical Conduction (CRM) Discontinuous Conduction (DCM)	Surface Mount	10.5 V	27 V	10 µA	-40 °C	125 ¯C

Catalog

Critical Conduction Mode (CrM) Power Factor Correction Controller, THD Enhancer

Key Features

• Valley Count Frequency Foldback

• Dynamic Response Enhancer

• Soft/Fast OVP

• THD Enhancer

• Line level feed-forward

• Protections- Brown Out - Thermal Shutdown - OVP - Over Current limitation - Pin open/short protection

• Wide Vcc (10.5~28 V) range/ 3 Vcc startup level

• OTA Error Amp

Description

The NCL2801 is a current mode CRM Boost PFC control IC which can provide the best class THD performance over extended operating range utilizing ON Semiconductor’s THD enhancer technique. Efficiency and standby power are enhanced with Valley Count Frequency Fold-back (VCFF) method.
