LASOAU120 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH PUSHBUTTON DPDT 8A 125V
| Part | Mechanical Life | Electrical Life | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Current Rating (Amps) | Circuit | Termination Style | Type | Panel Cutout Dimensions [diameter] | Switch Function | Mounting Type | Voltage Rating - AC | Ingress Protection | Color - Actuator/Cap | Voltage Rating - DC | Actuator Marking |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

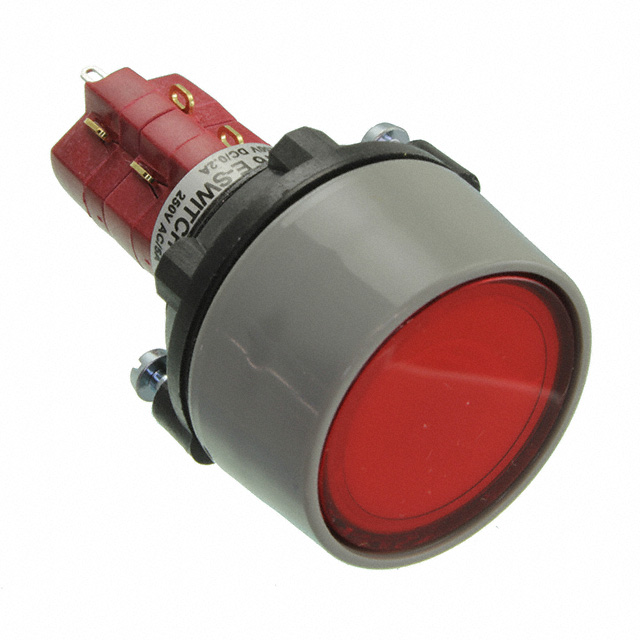

 E-Switch | 100000 Cycles | 50000 Cycles | 55 °C | -20 ░C | Button Flush Round | 6 A 8 A | DPDT | Solder Lug | Standard | 22 mm | On-Mom | Panel Mount Front | 125 V | IP65 - Dust Tight Water Resistant | Red | 24 V | No Marking |
 E-Switch | 100000 Cycles | 50000 Cycles | 55 °C | -20 ░C | Button Flush Round | 6 A 8 A | DPDT | Solder Lug | Standard | 22 mm | On-Mom | Panel Mount Front | 125 V | IP65 - Dust Tight Water Resistant | Green | 24 V | No Marking |
