FF1800 Series

Manufacturer: INFINEON

Catalog

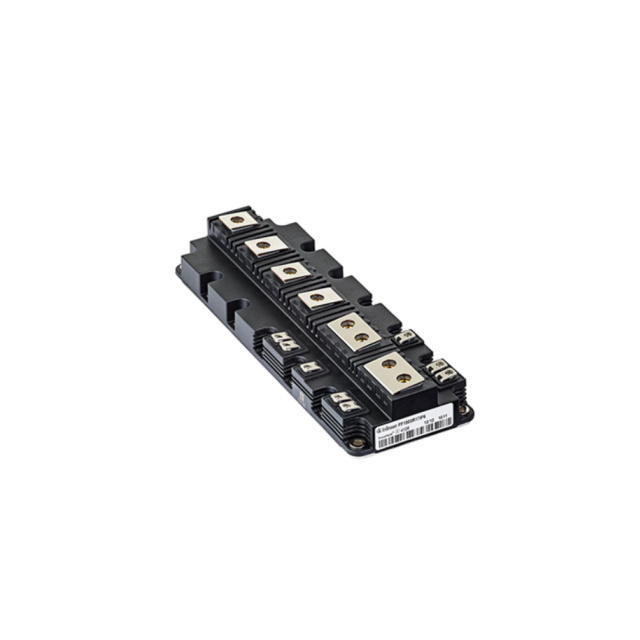

THE FF1800R12IE5P IS A DUAL IGBT5 - E5 MODULE IN A PRIMEPACK™ 3+ HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 1800 A.

Part	Operating Temperature [Max]	Operating Temperature [Min]	Vce(on) (Max) @ Vge, Ic	Package / Case	Mounting Type	NTC Thermistor	Input Capacitance (Cies) @ Vce	Supplier Device Package	Power - Max [Max]	Configuration	Input	Current - Collector (Ic) (Max) [Max]	IGBT Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Collector Cutoff (Max) [Max]
INFINEON FF1800R12IE5PBPSA1	175 °C	-40 °C	2.15 V	Module	Chassis Mount		98.5 nF	Module	20 mW	2 Independent	Standard	1800 A	Trench Field Stop	1200 V	5 mA
INFINEON FF1800R17IP5PBPSA1	175 °C	-40 C	2.2 V	Module	Chassis Mount		105 nF	Module	1800000 W	Half Bridge	Standard	1800 A	Trench Field Stop	1700 V	5 mA
