FS200 Series

Manufacturer: INFINEON

Catalog

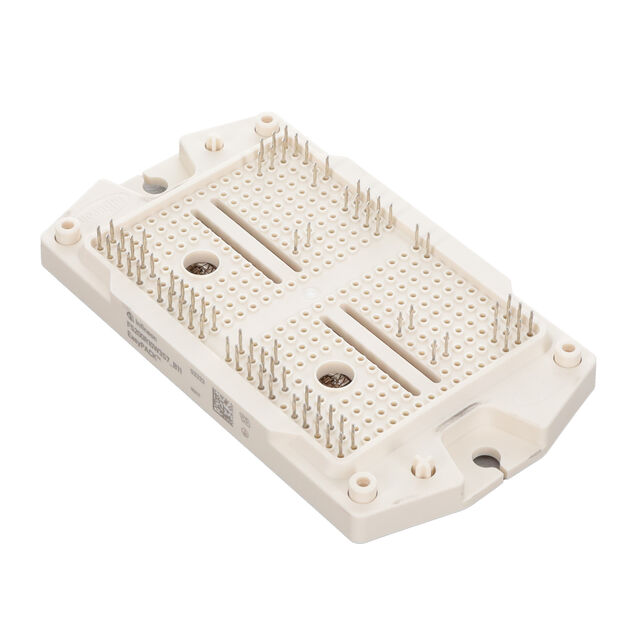

THE FS200R10W3S7_B11 IS A 950 V, 200 A EASYPACK™ 3B MODULE

Part	Current - Collector Cutoff (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Input	Package / Case	Configuration	Voltage - Collector Emitter Breakdown (Max) [Max]	Supplier Device Package	Input Capacitance (Cies) @ Vce	IGBT Type	Vce(on) (Max) @ Vge, Ic [Max]	NTC Thermistor	Current - Collector (Ic) (Max) [Max]	Mounting Type	Power - Max [Max]
INFINEON FS200R10W3S7B11BPSA1	53 µA	-40 °C	150 °C	Standard	Module	Full Bridge Inverter	950 V	AG-EASY3B	13 nF	Trench Field Stop	1.98 V		130 A	Chassis Mount	20 mW
