100302 Series

Catalog

OR/NOR GATE, 100K SERIES, 5-FUNC

Part	Package / Case [y]	Package / Case	Package / Case [x]	Mounting Type	Number of Inputs	Number of Inputs	Number of Inputs	Number of Inputs	Number of Inputs	Number of Inputs	Voltage - Supply [Max]	Voltage - Supply [Min]	Logic Type
Texas Instruments 100302J-QMLV	10.16 mm	24-DIP	0.4 "	Through Hole	10 Input	2	2	2	2	2	5.7 V	4.2 V	NOR/OR Gate

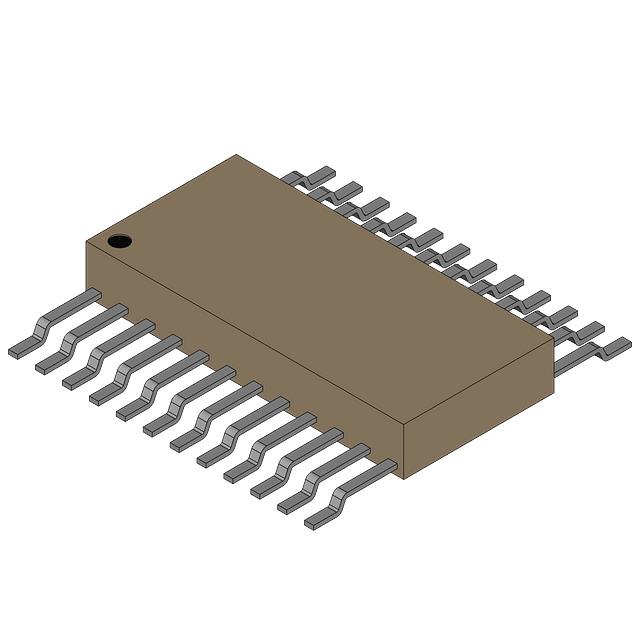

Texas Instruments 100302W-QMLV				Surface Mount	10 Input	2	2	2	2	2	-5.7 V	-4.2 V	NOR/OR Gate
