APCF Series

Catalog

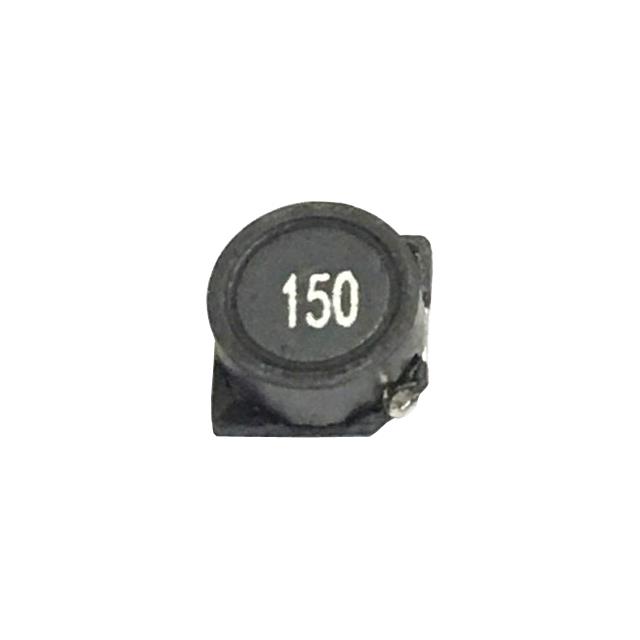

POWER INDUCTORS - SMD CHILISIN POWER - INDUCTOR (IND) FERRITE SMD SHIELDED TYPE

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Inductance Frequency - Test	Current - Saturation (Isat)	Material - Core	Current Rating (Amps)	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Ratings	Shielding	DC Resistance (DCR)	Tolerance	Inductance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max)
Pulse Electronics APCF00131375330M00	0.309 "	7.85 mm	100 kHz	3.2 A	Ferrite	3.4 A	Nonstandard	125 °C	-40 C	AEC-Q200	Shielded	39.5 mOhm	20 %	33 µH	12.5 mm	0.492 "	12.5 mm	0.492 "	Surface Mount
Pulse Electronics APCF001313751R2T00	0.309 "	7.85 mm	100 kHz	13 A	Ferrite	8.2 A	Nonstandard	125 °C	-40 C	AEC-Q200	Shielded	6.9 mOhm	30 %	1.2 µH	12.5 mm	0.492 "	12.5 mm	0.492 "	Surface Mount
Pulse Electronics APCF00070745150M00			100 kHz	1.1 A	Ferrite	1.53 A	Nonstandard	125 °C	-40 C	AEC-Q200	Shielded	52 mOhm	20 %	15 µH	7 mm	0.276 in	7 mm	0.276 "	Surface Mount	0.189 "	4.8 mm
Pulse Electronics APCF00131375220M00	0.309 "	7.85 mm	100 kHz	4 A	Ferrite	4 A	Nonstandard	125 °C	-40 C	AEC-Q200	Shielded	26.3 mOhm	20 %	22 µH	12.5 mm	0.492 "	12.5 mm	0.492 "	Surface Mount
Pulse Electronics APCF00131375100M00	0.309 "	7.85 mm	100 kHz	5.5 A	Ferrite	5.4 A	Nonstandard	125 °C	-40 C	AEC-Q200	Shielded	15.6 mOhm	20 %	10 µH	12.5 mm	0.492 "	12.5 mm	0.492 "	Surface Mount
Pulse Electronics APCF00070745471M00			100 kHz	220 mA	Ferrite	0.31 A	Nonstandard	125 °C	-40 C	AEC-Q200	Shielded	1.05 Ohm	20 %	470 µH	7 mm	0.276 in	7 mm	0.276 "	Surface Mount	0.189 "	4.8 mm
