1376383 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

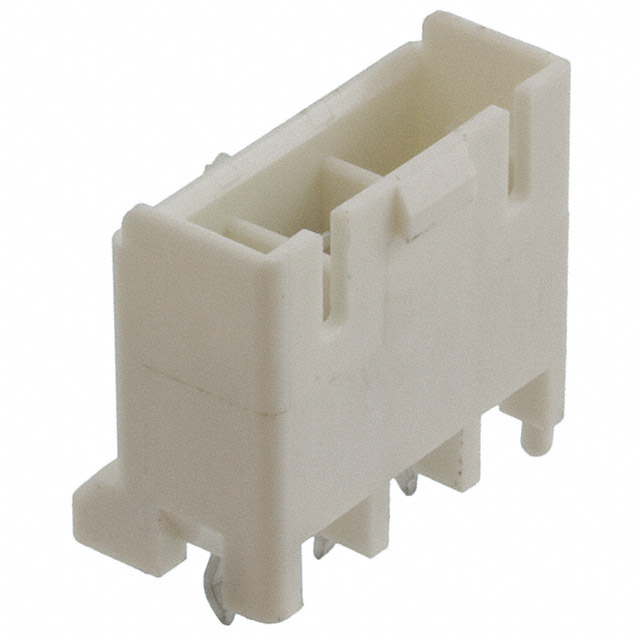

5MM B-T-W CONN. 3P HDR ASSEMBL
| Part | Mated Stacking Heights | Applications | Contact Length - Post | Contact Length - Post | Insulation Height | Insulation Height | Insulation Color | Pitch - Mating | Pitch - Mating | Mounting Type | Shrouding | Material Flammability Rating | Contact Material | Number of Rows | Connector Type | Current Rating (Amps) | Number of Positions Loaded | Voltage Rating | Style | Contact Shape | Contact Finish - Post | Termination | Fastening Type | Insulation Material | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 19.4 mm | General Purpose | 0.138 in | 3.5 mm | 14.1 mm | 0.555 in | Natural | 0.197 " | 5 mm | Through Hole | Shrouded - 4 Wall | UL94 V-0 | Copper Alloy | 1 | Header | Varies by Wire Gauge | All | 300 VAC | Board to Cable/Wire | Rectangular | Tin | Kinked Pin Solder | Locking Ramp | Glass Filled Nylon 6/6 Polyamide (PA66) | Tab | -40 C | 105 ░C | Board Guide |
 TE Connectivity AMP Connectors | 19.4 mm | General Purpose | 0.138 in | 3.5 mm | 14.1 mm | 0.555 in | Red | 0.197 " | 5 mm | Through Hole | Shrouded - 4 Wall | UL94 V-0 | Copper Alloy | 1 | Header | Varies by Wire Gauge | All | 300 VAC | Board to Cable/Wire | Rectangular | Tin | Solder | Locking Ramp | Glass Filled Nylon 6/6 Polyamide (PA66) | Tab | -40 C | 105 ░C | Board Guide |
