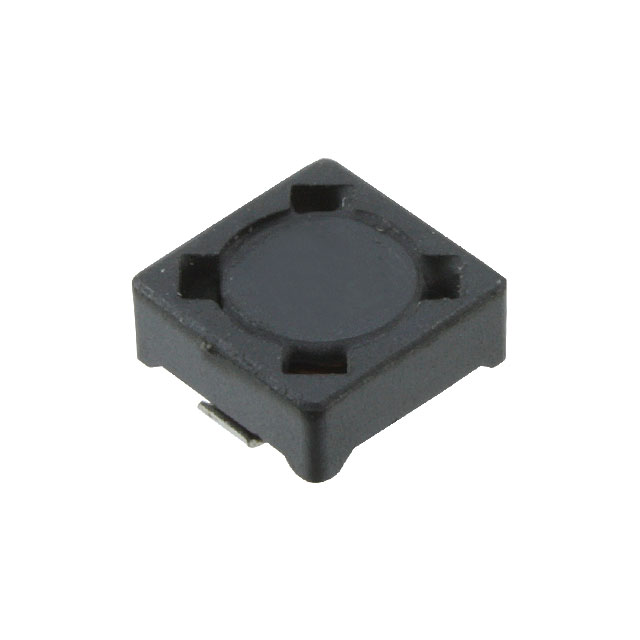

P1166 Series

Catalog

FIXED IND 15UH 1.4A 92 MOHM SMD

Part	Type	Inductance Frequency - Test	Mounting Type	Inductance	DC Resistance (DCR) [Max]	Current Rating (Amps)	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Frequency - Self Resonant	Shielding	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Current - Saturation (Isat)

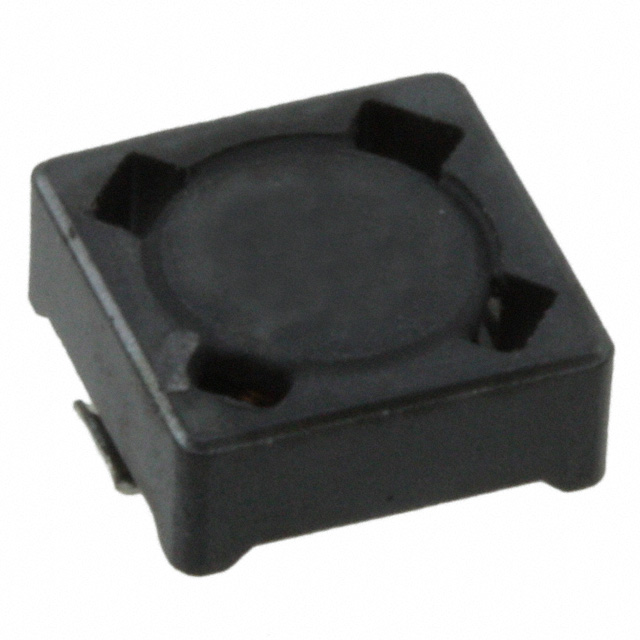

Pulse Electronics P1166.153NLT	Wirewound	100 kHz	Surface Mount	15 µH	92 mOhm	1.4 A	20 %	0.138 "	3.51 mm	130 °C	-40 C	Nonstandard	22 MHz	Shielded	7.54 mm	0.297 in	7.54 mm	0.297 in
Pulse Electronics P1166.224NLT	Wirewound	100 kHz	Surface Mount	220 µH	1.48 Ohm	350 mA	20 %	0.138 "	3.51 mm	130 °C	-40 C	Nonstandard	5.1 MHz	Shielded	7.54 mm	0.297 in	7.54 mm	0.297 in	370 mA
Pulse Electronics P1166.104NLT	Wirewound	100 kHz	Surface Mount	100 µH	580 mOhm	0.56 A	20 %	0.138 "	3.51 mm	130 °C	-40 C	Nonstandard	7.5 MHz	Shielded	7.54 mm	0.297 in	7.54 mm	0.297 in	0.56 A
