836-22 Series

Catalog

CONN SPRING PISTON 6POS PCB

Part	Contact Finish	Pitch [x]	Pitch [x]	Connector Type	Mounting Type	Material	Contact Finish Thickness	Contact Finish Thickness	Number of Contacts	Number of Rows	Number of Contacts [custom]

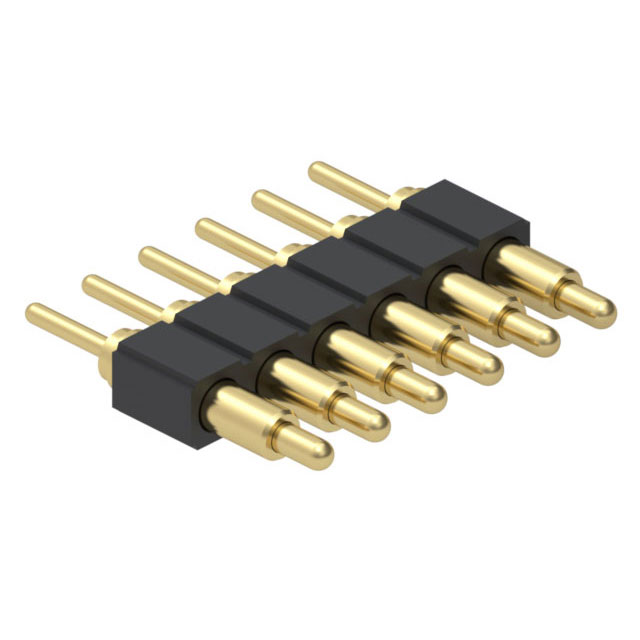

Mill-Max Manufacturing Corp. 836-22-006-10-001101	Gold	0.079 in	2 mm	Piston	Through Hole	Copper Alloy	0.25 Ám	10 Áin	6	1

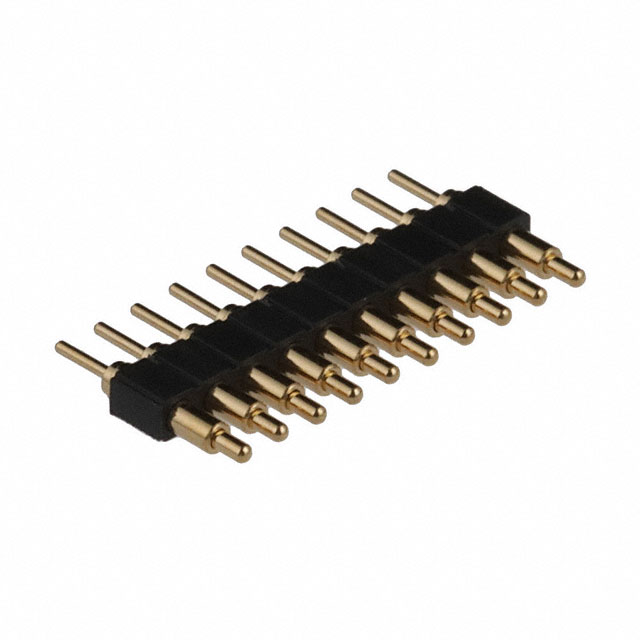

Mill-Max Manufacturing Corp. 836-22-010-10-001101	Gold	0.079 in	2 mm	Piston	Through Hole	Copper Alloy	0.25 Ám	10 Áin	10	1

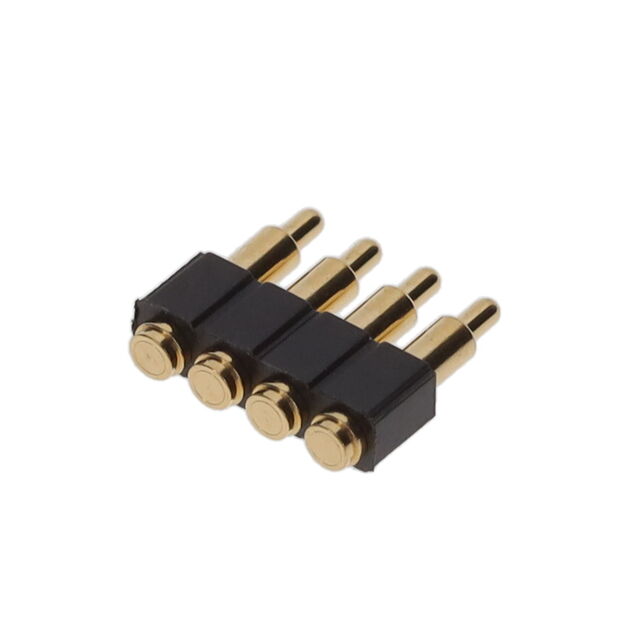

Mill-Max Manufacturing Corp. 836-22-004-30-001101	Gold	0.079 in	2 mm	Piston	Surface Mount	Copper Alloy	0.51 µm	20 µin	4	1
Mill-Max Manufacturing Corp. 836-22-001-30-001101	Gold			Piston	Surface Mount	Copper Alloy	0.51 µm	20 µin		1	1

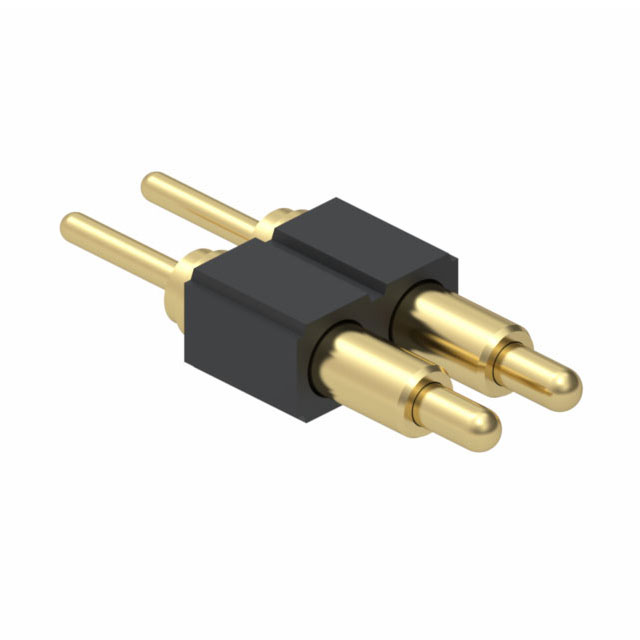

Mill-Max Manufacturing Corp. 836-22-002-10-001101	Gold	0.079 in	2 mm	Piston	Through Hole	Copper Alloy	0.25 Ám	10 Áin	2	1

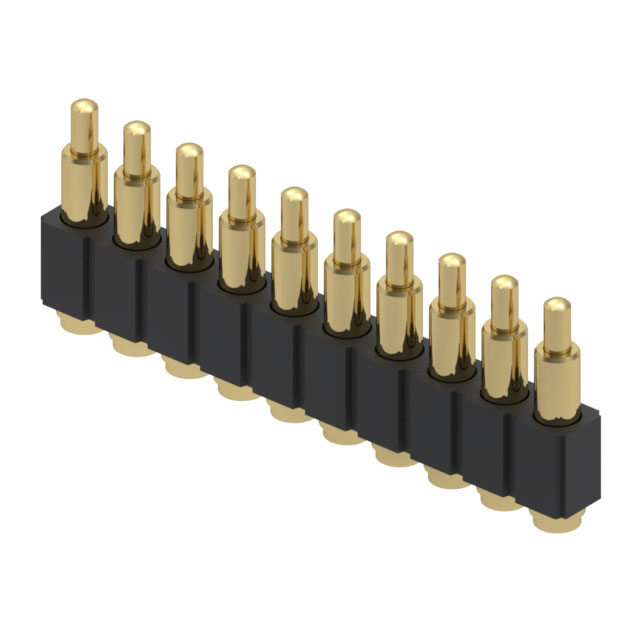

Mill-Max Manufacturing Corp. 836-22-010-30-001101	Gold	0.079 in	2 mm	Piston	Surface Mount	Copper Alloy	0.51 µm	20 µin	10	1
Mill-Max Manufacturing Corp. 836-22-005-30-001101	Gold	0.079 in	2 mm	Piston	Surface Mount	Copper Alloy	0.51 µm	20 µin	5	1

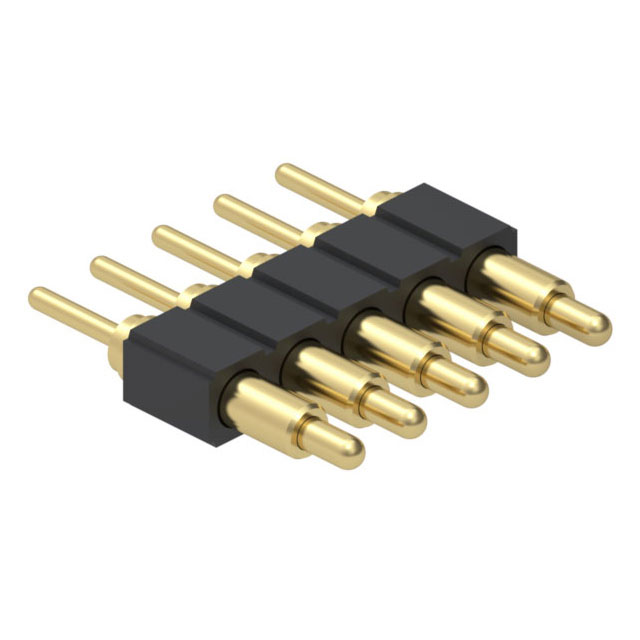

Mill-Max Manufacturing Corp. 836-22-005-10-001101	Gold	0.079 in	2 mm	Piston	Through Hole	Copper Alloy	0.25 Ám	10 Áin	5	1

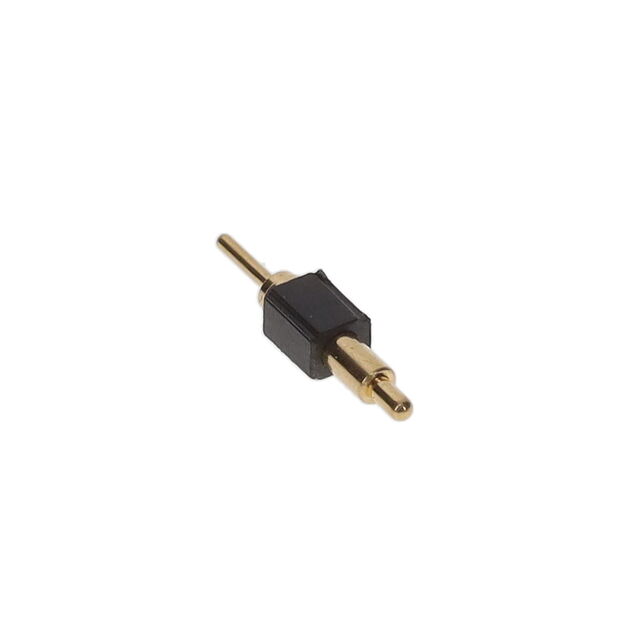

Mill-Max Manufacturing Corp. 836-22-001-10-001101	Gold			Piston	Through Hole	Copper Alloy	0.25 Ám	10 Áin		1	1
Mill-Max Manufacturing Corp. 836-22-008-30-001101	Gold	0.079 in	2 mm	Piston	Surface Mount	Copper Alloy	0.51 µm	20 µin	8	1
