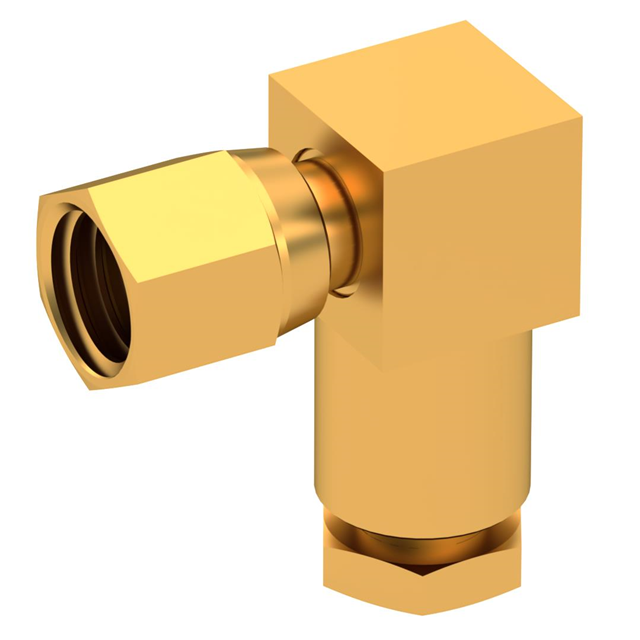

1005-1551 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
SMC F RA NA CL 2/50S
| Part | Voltage Rating | Includes | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Insertion Loss | Body Finish | Dielectric Material | Center Contact Plating | Body Material | Mounting Type | Shield Termination | Contact Termination | Center Contact Material | Cable Group | Cable Group | Fastening Type | Connector Type | Impedance | Frequency - Max [Max] | Number of Ports | Housing Color | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 250 V | 1 Connector 1 Ferrule | -65 ░C | 165 °C | 500 | 0.5 dB | Nickel | Polytetrafluoroethylene (PTFE) | Gold | Brass | Free Hanging (In-Line) Right Angle | Clamp | Solder | Beryllium Copper | 196 | RG-178 | Threaded | Female Socket Plug | 50 Ohms | 10 GHz | 1 | Silver | SMC |
 Radiall USA, Inc. | 335 V | 1 Connector 1 Ferrule | -65 ░C | 165 °C | 500 | 0.5 dB | Gold | Polytetrafluoroethylene (PTFE) | Gold | Brass | Free Hanging (In-Line) Right Angle | Clamp | Solder | Beryllium Copper | RG-174 RG-179 RG-316 | Threaded | Female Socket Plug | 50 Ohms | 10 GHz | 1 | Gold | SMC |
