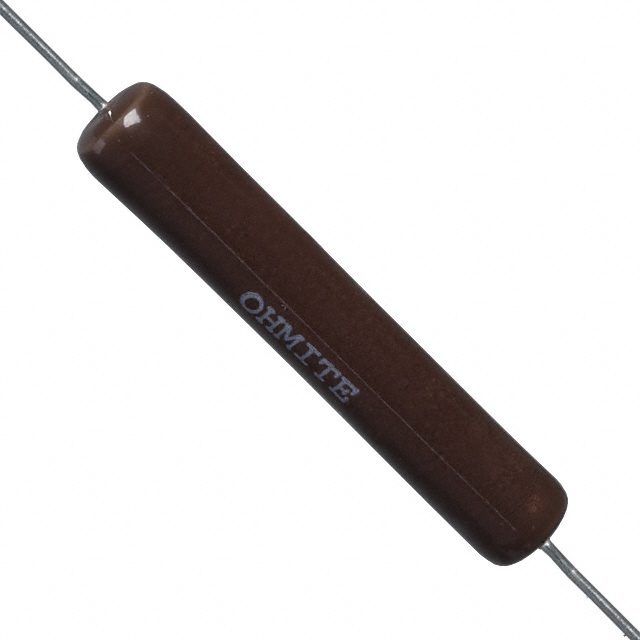

20 Series

Manufacturer: Ohmite

Catalog

RES WIREWOUND 350 OHM 5% 5W ±30PPM/°C VITREOUS ENAMEL AXL

Part	Power (Watts)	Features	Composition	Number of Terminations [custom]	Supplier Device Package	Temperature Coefficient	Package / Case	Resistance	Tolerance	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]
Ohmite 25J350E	5 W	Flame Retardant Coating Safety	Wirewound	2	Axial	30 ppm/°C	Axial	350 Ohms	5 %	0.276 in	1.016 in	7 mm	25.8 mm

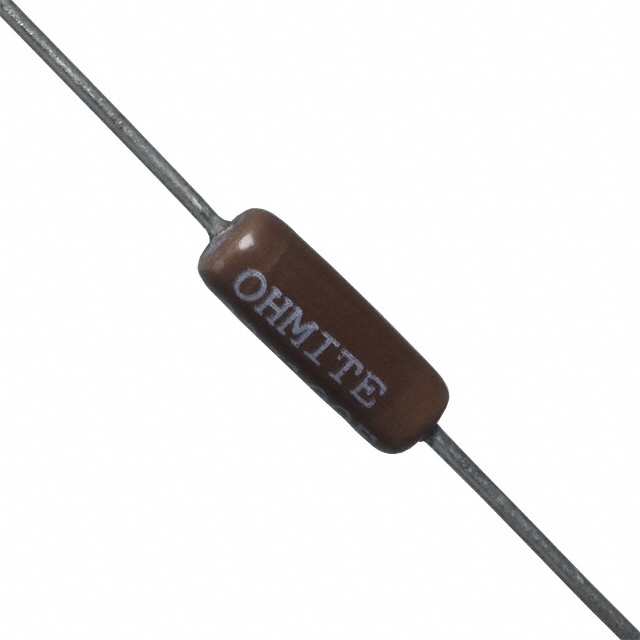

Ohmite 23J75RE	3 W	Flame Retardant Coating Safety	Wirewound	2	Axial	30 ppm/°C	Axial	75 Ohms	5 %			0.22 in 5.6 mm	0.516 in 13.1 mm
Ohmite 22J47RE	2 W	Flame Retardant Coating Safety	Wirewound	2	Axial	30 ppm/°C	Axial	47 Ohms	5 %	0.22 in	0.421 in	5.6 mm	10.7 mm
Ohmite 23J10KE	3 W	Flame Retardant Coating Safety	Wirewound	2	Axial	30 ppm/°C	Axial	10000 Ohms	5 %			0.22 in 5.6 mm	0.516 in 13.1 mm
Ohmite 22J270E	2 W	Flame Retardant Coating Safety	Wirewound	2	Axial	30 ppm/°C	Axial	270 Ohms	5 %	0.22 in	0.421 in	5.6 mm	10.7 mm
Ohmite 25JR25E	5 W	Flame Retardant Coating Safety	Wirewound	2	Axial		Axial	0.25 Ohms	5 %	0.276 in	1.016 in	7 mm	25.8 mm
Ohmite 23J2K2E	3 W	Flame Retardant Coating Safety	Wirewound	2	Axial	30 ppm/°C	Axial	2200 Ohms	5 %			0.22 in 5.6 mm	0.516 in 13.1 mm
Ohmite 20J3K3E	10 W	Flame Retardant Coating Safety	Wirewound	2	Axial	30 ppm/°C	Axial	3300 Ohms	5 %	0.394 in	1.858 "	10 mm	47.2 mm
Ohmite 20J330E	10 W	Flame Retardant Coating Safety	Wirewound	2	Axial	30 ppm/°C	Axial	330 Ohms	5 %	0.394 in	1.858 "	10 mm	47.2 mm
Ohmite 22J750E	2 W	Flame Retardant Coating Safety	Wirewound	2	Axial	30 ppm/°C	Axial	750 Ohms	5 %	0.22 in	0.421 in	5.6 mm	10.7 mm
