UA7905 Series

1.5-A, negative linear voltage regulator

Catalog

1.5-A, negative linear voltage regulator

Part	Voltage - Input (Max) [Max]	Voltage - Output (Min/Fixed)	Voltage Dropout (Max) [Max]	Package / Case	Supplier Device Package	Current - Output	Output Type	Number of Regulators	PSRR	Protection Features	Output Configuration	Mounting Type	Operating Temperature [Max]	Voltage - Output (Min/Fixed) [Min]	Package / Case
Texas Instruments UA7908CKCS	-25 V	-8 V	1.1 V	TO-220-3	TO-220-3	1.5 A	1.81 mOhm	1	60 dB	Over Current Over Temperature Short Circuit	Negative	Through Hole	125 °C

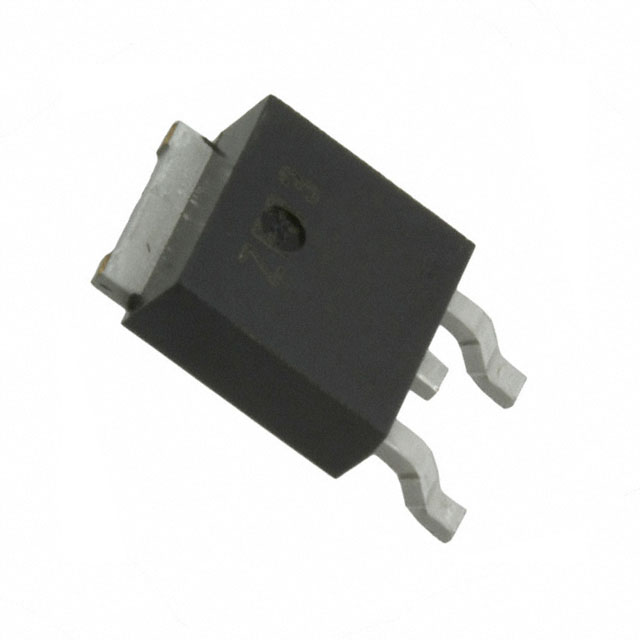

Texas Instruments UA7905CKTER	-25 V		1.1 V	TO-252-4	3-PowerFLEX™	1.5 A	1.81 mOhm	1	60 dB	Over Current Over Temperature Short Circuit	Negative	Surface Mount	125 °C	-5 V	DPAK (3 Leads + Tab)
Texas Instruments UA7905CKCSE3	-25 V		1.1 V	TO-220-3	TO-220-3	1.5 A	1.81 mOhm	1	60 dB	Over Current Over Temperature Short Circuit	Negative	Through Hole	125 °C	-5 V
Texas Instruments UA7905CKCS	-25 V		1.1 V	TO-220-3	TO-220-3	1.5 A	1.81 mOhm	1	60 dB	Over Current Over Temperature Short Circuit	Negative	Through Hole	125 °C	-5 V
Texas Instruments UA7905CKTTR	-25 V		1.1 V	D2PAK (3 Leads + Tab) TO-263-4 TO-263AA	TO-263 (DDPAK-3)	1.5 A	1.81 mOhm	1	60 dB	Over Current Over Temperature Short Circuit	Negative	Surface Mount	125 °C	-5 V

Catalog

1.5-A, negative linear voltage regulator

Key Features

• 3-Terminal RegulatorsOutput Current up to 1.5 ANo External ComponentsInternal Thermal-Overload ProtectionHigh Power-Dissipation CapabilityInternal Short-Circuit Current LimitingOutput Transistor Safe-Area CompensationPowerFLEX, PowerPAD are trademarks of Texas Instruments.3-Terminal RegulatorsOutput Current up to 1.5 ANo External ComponentsInternal Thermal-Overload ProtectionHigh Power-Dissipation CapabilityInternal Short-Circuit Current LimitingOutput Transistor Safe-Area CompensationPowerFLEX, PowerPAD are trademarks of Texas Instruments.

Description

This series of fixed-negative-voltage integrated-circuit voltage regulators is designed to complement Series µA7900 in a wide range of applications. These applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation. Each of these regulators can deliver up to 1.5 A of output current. The internal current limiting and thermal shutdown features of these regulators essentially make them immune to overload. In addition to use as fixed-voltage regulators, these devices can be used with external components to obtain adjustable output voltages and currents and also as the power-pass element in precision regulators. This series of fixed-negative-voltage integrated-circuit voltage regulators is designed to complement Series µA7900 in a wide range of applications. These applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation. Each of these regulators can deliver up to 1.5 A of output current. The internal current limiting and thermal shutdown features of these regulators essentially make them immune to overload. In addition to use as fixed-voltage regulators, these devices can be used with external components to obtain adjustable output voltages and currents and also as the power-pass element in precision regulators.
