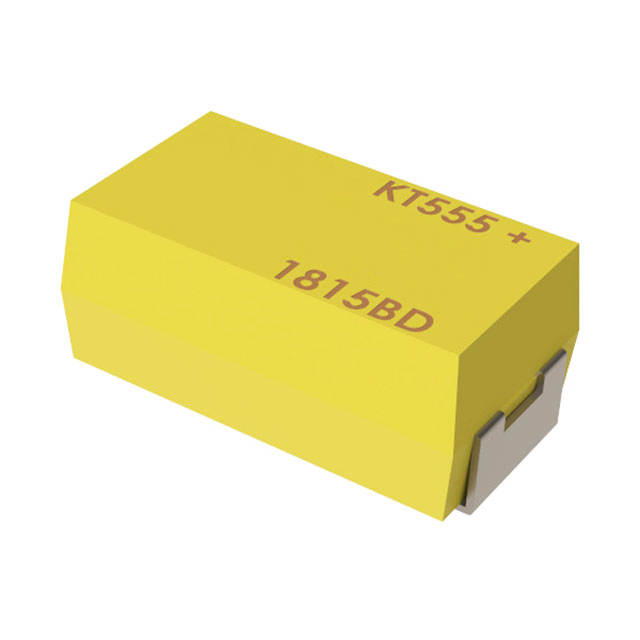

T555B Series

Manufacturer: KEMET

Catalog

CAP TANT POLY 120UF 50V SMD

Part	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	ESR (Equivalent Series Resistance)	Tolerance	Features	Voltage - Rated	Capacitance	Lifetime @ Temp.	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Type	Manufacturer Size Code	Operating Temperature [Min]	Operating Temperature [Max]
KEMET T555B127M050AT	Surface Mount	8.5 mm	0.965 "	24.5 mm	0.335 in	90 mOhm	20 %	General Purpose	50 VDC	120 µF	2000 Hrs	Nonstandard	9.6 mm	0.378 "	Hermetically Sealed	B	-55 C	105 ░C

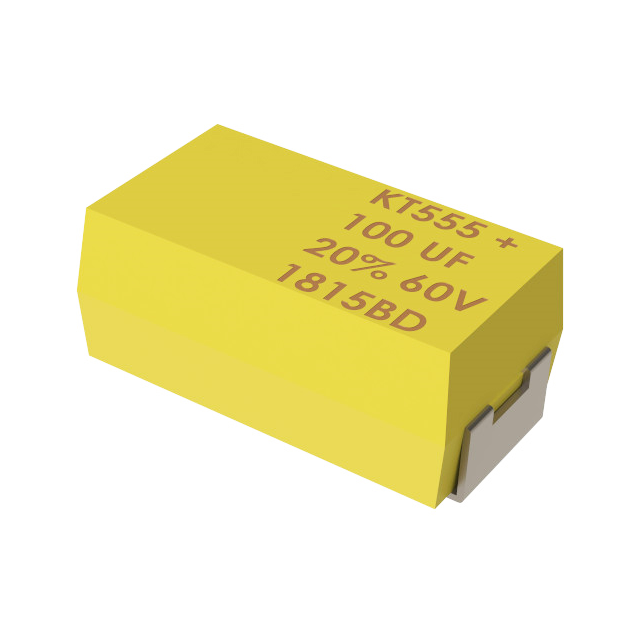

KEMET T555B826K075AH	Surface Mount	8.5 mm	0.965 "	24.5 mm	0.335 in	220 mOhm	10 %	General Purpose	75 V	0.082 mF	2000 Hrs	Nonstandard	9.6 mm	0.378 "	Hermetically Sealed	B	-55 C	105 ░C
KEMET T555B206K060AT	Surface Mount	8.5 mm	0.965 "	24.5 mm	0.335 in	200 mOhm	10 %	General Purpose	60 VDC	20 µF	2000 Hrs	Nonstandard	9.6 mm	0.378 "	Hermetically Sealed	B	-55 C	105 ░C
KEMET T555B147K006AT	Surface Mount	8.5 mm	0.965 "	24.5 mm	0.335 in	120 mOhm	10 %	General Purpose	6.3 VDC	140 µF	2000 Hrs	Nonstandard	9.6 mm	0.378 "	Hermetically Sealed	B	-55 C	105 ░C
KEMET T555B506M025AH	Surface Mount	8.5 mm	0.965 "	24.5 mm	0.335 in	170 mOhm	20 %	General Purpose	25 VDC	50 µF	2000 Hrs	Nonstandard	9.6 mm	0.378 "	Hermetically Sealed	B	-55 C	105 ░C
KEMET T555B206M060AH	Surface Mount	8.5 mm	0.965 "	24.5 mm	0.335 in	200 mOhm	20 %	General Purpose	60 VDC	20 µF	2000 Hrs	Nonstandard	9.6 mm	0.378 "	Hermetically Sealed	B	-55 C	105 ░C
KEMET T555B107K010AH	Surface Mount	8.5 mm	0.965 "	24.5 mm	0.335 in	140 mOhm	10 %	General Purpose	10 V	100 µF	2000 Hrs	Nonstandard	9.6 mm	0.378 "	Hermetically Sealed	B	-55 C	105 ░C
KEMET T555B107M040AT	Surface Mount	8.5 mm	0.965 "	24.5 mm	0.335 in	150 mOhm	20 %	General Purpose	40 V	100 µF	2000 Hrs	Nonstandard	9.6 mm	0.378 "	Hermetically Sealed	B	-55 C	105 ░C
KEMET T555B506M025AT	Surface Mount	8.5 mm	0.965 "	24.5 mm	0.335 in	170 mOhm	20 %	General Purpose	25 VDC	50 µF	2000 Hrs	Nonstandard	9.6 mm	0.378 "	Hermetically Sealed	B	-55 C	105 ░C
KEMET T555B187M010AH	Surface Mount	8.5 mm	0.965 "	24.5 mm	0.335 in	110 mOhm	20 %	General Purpose	10 V	180 µF	2000 Hrs	Nonstandard	9.6 mm	0.378 "	Hermetically Sealed	B	-55 C	105 ░C
