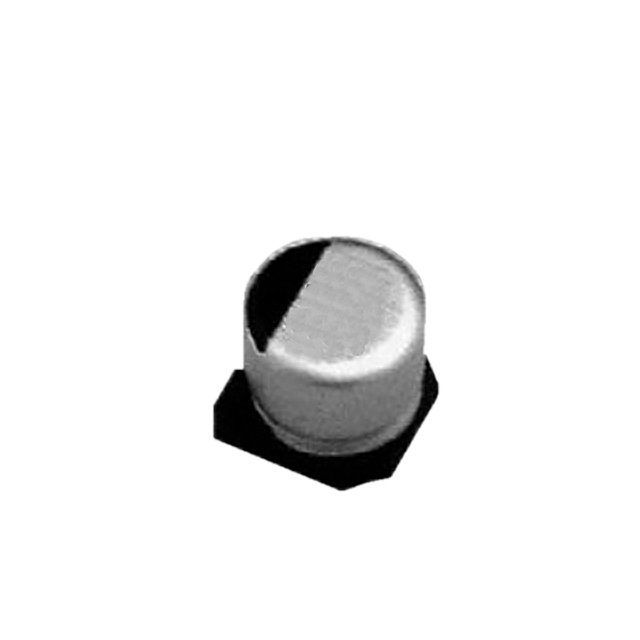

MLA Series

Manufacturer: Chemi-Con

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SMD

Part	Impedance	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Polarization	Tolerance	Ripple Current @ High Frequency	Package / Case	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Lifetime @ Temp.	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Ripple Current @ Low Frequency	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Chemi-Con EMLA250ARA151MHA0G	0.16 Ohms	150 µF	10.3 mm	0.406 in	-40 C	105 ░C	Polar	20 %	600 mA	Radial Can - SMD	Surface Mount	0.315 in	8 mm	25 VDC	3000 Hrs	8.3 mm	8.3 mm	0.327 in	0.327 in	240 mA	General Purpose
Chemi-Con EMLA160ARA471MJA0G	80 mOhms	470 µF	10.3 mm	0.406 in	-40 C	105 ░C	Polar	20 %	850 mA	Radial Can - SMD	Surface Mount	0.394 in	10 mm	16 V	3000 Hrs	10.3 mm	10.3 mm	0.406 "	0.406 in	425 mA	General Purpose
Chemi-Con EMLA250ARA220ME61G	1.3 Ohms	22 µF			-40 C	105 ░C	Polar	20 %	95 mA	Radial Can - SMD	Surface Mount	0.197 in	5 mm	25 VDC	3000 Hrs	0.209 in 5.3 mm	0.209 in 5.3 mm			38 mA	General Purpose	6.1 mm	0.24 "
Chemi-Con EMLA100ARA470MF61G	700 mOhms	47 µF			-40 C	105 ░C	Polar	20 %	140 mA	Radial Can - SMD	Surface Mount	0.248 "	6.3 mm	10 V	3000 Hrs	6.6 mm	6.6 mm	0.26 in	0.26 in	56 mA	General Purpose	6.1 mm	0.24 "
