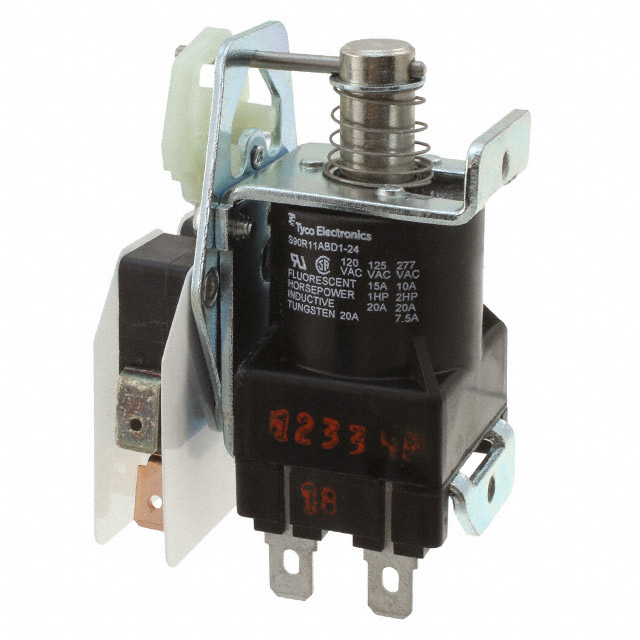

S90R11 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RELAY IMPULSE DPDT 20A 24V
| Part | Coil Resistance | Mounting Type | Contact Form | Contact Rating (Current) | Approval Agency | Coil Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Coil Insulation | Relay Type | Coil Type | Switching Voltage [Max] | Termination Style | Load - Max Switching | Coil Current | Must Operate Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 8.7 Ohms | Chassis Mount | DPDT (2 Form C) | 20 A | CSA UR | 24 VAC | -10 °C | 60 °C | Class B | Impulse | Latching Single Coil | 277 VAC | Quick Connect - 0.250" (6.3mm) | 5540 VA | 375 mA | |
 TE Connectivity AMP Connectors | 1.08 kOhms | Chassis Mount | DPDT (2 Form C) | 20 A | CSA UR | 240 VAC/DC | -10 °C | 60 °C | Class B | Impulse | Latching Single Coil | 277 VAC | Quick Connect - 0.250" (6.3mm) | 5540 VA | 38 mA | 204 VAC |
TE Connectivity AMP Connectors | 92 Ohms | Chassis Mount | DPDT (2 Form C) | 20 A | CSA UR | 24 VDC | -10 °C | 60 °C | Class B | Impulse | Non Latching | 277 VAC | Quick Connect - 0.250" (6.3mm) | 5540 VA | 260 mA | 18 VDC |
