MAX22515 Series

Catalog

IC TRANSCEIVER 1/1 20WLP

Part	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Supplier Device Package [x]	Supplier Device Package [y]	Package / Case	Protocol	Mounting Type	Receiver Hysteresis	Voltage - Supply [Min]	Voltage - Supply [Max]	Type	Duplex	Supplied Contents	Contents	Primary Attributes	Secondary Attributes	Utilized IC / Part	Function	Embedded
Analog Devices Inc./Maxim Integrated MAX22515AWP+T	-40 °C	125 °C	20-WLP	1.97	2.54	20-WFBGA WLBGA	I/O-Link	Surface Mount	500 mV	4.5 V 8 V	5.5 V 36 V	Transceiver
Analog Devices Inc./Maxim Integrated MAX22515ATG+	-40 °C	125 °C	24-TQFN (4x4)			24-WFQFN Exposed Pad	I/O-Link	Surface Mount	500 mV	4.5 V 8 V	5.5 V 36 V	Transceiver	Full
Analog Devices Inc./Maxim Integrated MAX22515ATG+T	-40 °C	125 °C	24-TQFN (4x4)			24-WFQFN Exposed Pad	I/O-Link	Surface Mount	500 mV	4.5 V 8 V	5.5 V 36 V	Transceiver

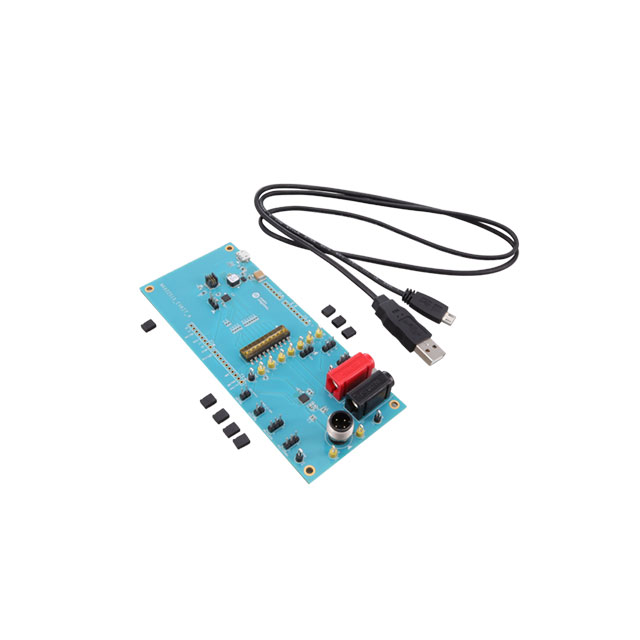

Analog Devices Inc./Maxim Integrated MAX22515EVKIT#												Interface		Board(s)	Board(s)	2-Channel (Dual)	Graphical User Interface (GUI)	MAX22515	Transceiver IO-Link®	32-Bit MCU
