1971874 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

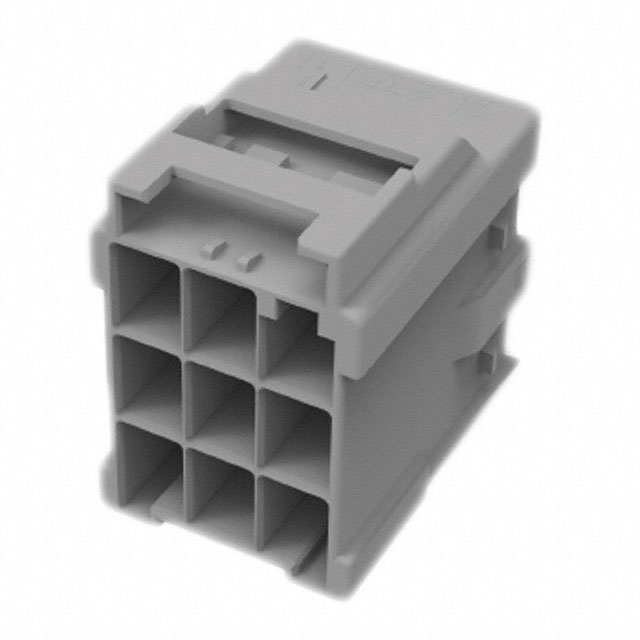

CONN RCPT HSG 9POS 6.00MM
| Part | Note | Number of Positions | Contact Termination | Row Spacing | Row Spacing | Insulation Material | Connector Type | Number of Rows [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Color | Mounting Type | Contact Type | Fastening Type | Pitch | Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Contacts Not Included | 9 | Crimp | 0.319 in | 8.1 mm | Polybutylene Terephthalate (PBT) | Receptacle | 3 | -55 C | 105 ░C | Gray | Free Hanging (In-Line) | Tab | Latch Lock | 6 mm | 0.236 in |
 TE Connectivity AMP Connectors | Contacts Not Included | 15 | Crimp | 0.319 in | 8.1 mm | Polybutylene Terephthalate (PBT) | Receptacle | 3 | -55 C | 105 ░C | Purple | Free Hanging (In-Line) | Tab | Latch Lock | 6 mm | 0.236 in |
 TE Connectivity AMP Connectors | Contacts Not Included | 15 | Crimp | 0.319 in | 8.1 mm | Polybutylene Terephthalate (PBT) | Receptacle | 3 | -55 C | 105 ░C | Natural | Free Hanging (In-Line) | Tab | Latch Lock | 6 mm | 0.236 in |
