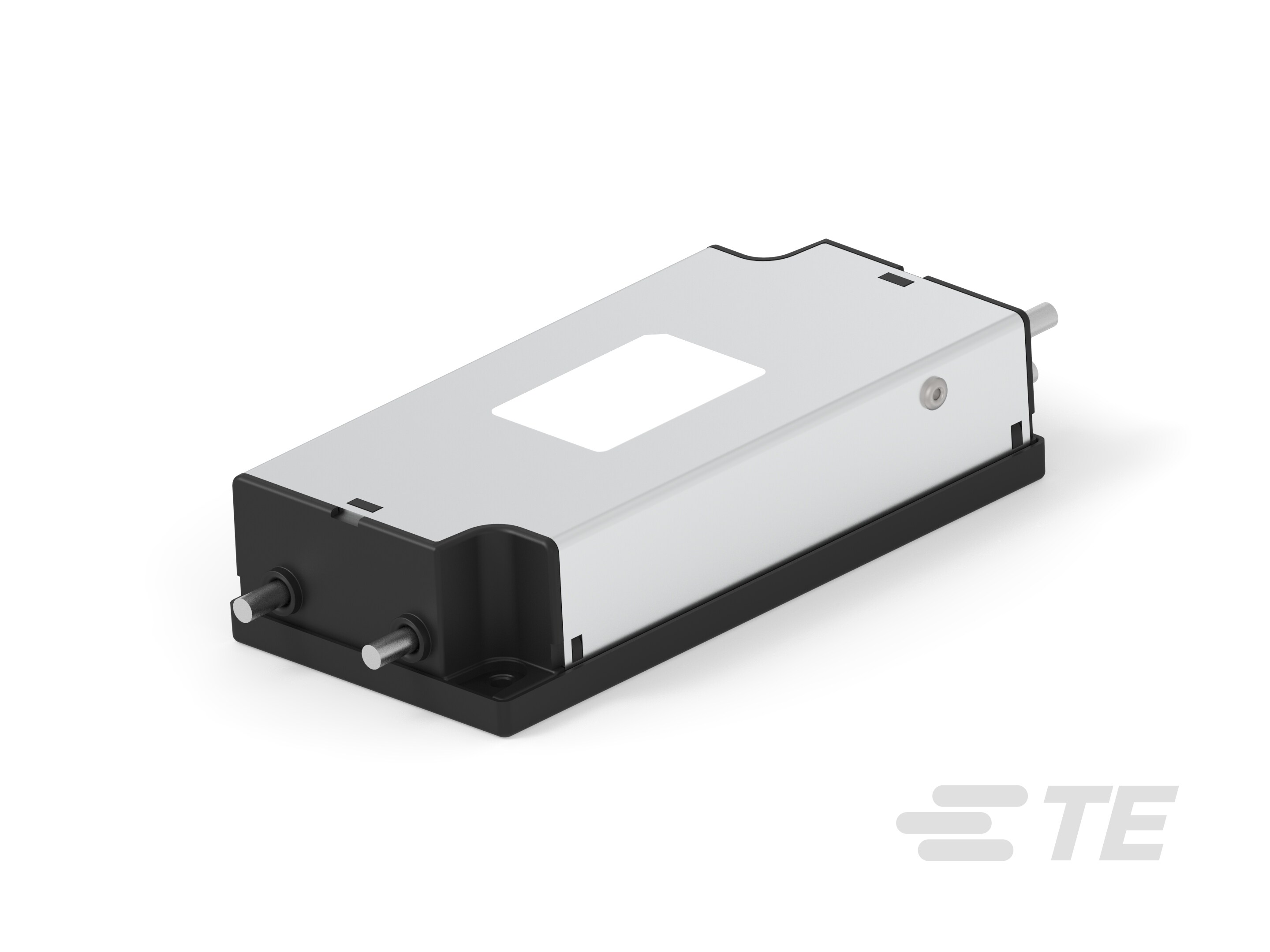

Schaffner FN2524 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
FN2524-10-05-C1111
| Part | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | Mounting Type | Voltage - Rated AC | Voltage - Rated DC | Configuration | Frequency - Operating | Applications | Current | Filter Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Quick Connect | 85 °C | -40 C | CE CQC CSA ENEC UKCA UR | Chassis Mount | 277 V | 400 V | Two Stage | 60 Hz | General Purpose | 10 A | Three Phase (Wye) |
 TE Connectivity AMP Connectors | Quick Connect | 85 °C | -40 C | CE CQC CSA ENEC UKCA UR | Chassis Mount | 277 V | 400 V | Two Stage | 60 Hz | General Purpose | 32 A | Three Phase (Wye) |
